Connect Selected Lines, Bars, and Surfaces at Interfaces

Product Support
,
1

Hello,
In the YouTube video "DE – Modeling and Design of Volume Elements in RFEM 6" you show at minute 14 how a line is pulled upwards and then the function "Connect Selected Lines, Bars, and Surfaces at Interfaces" is used to split the circle.

I am trying to replicate this procedure in my model.

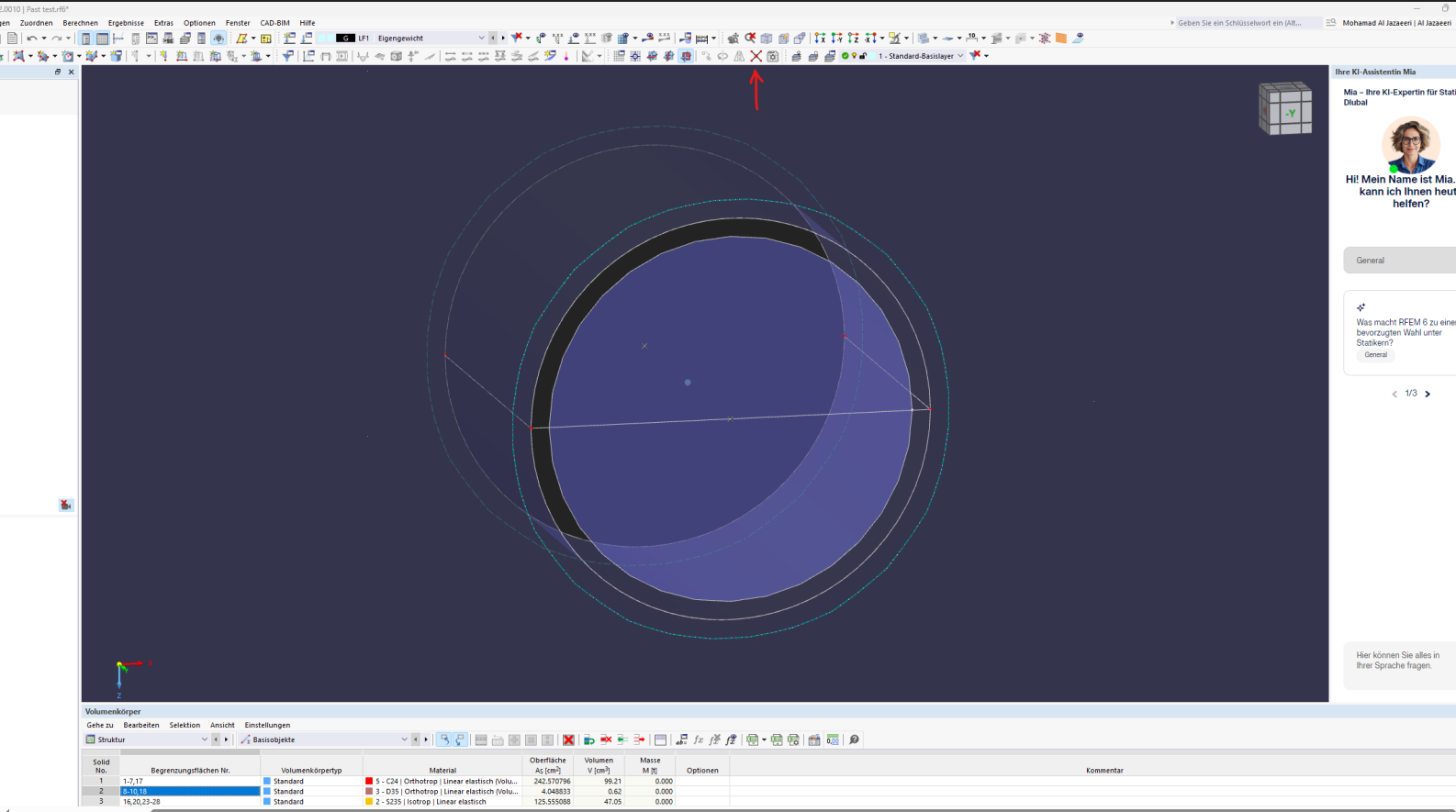

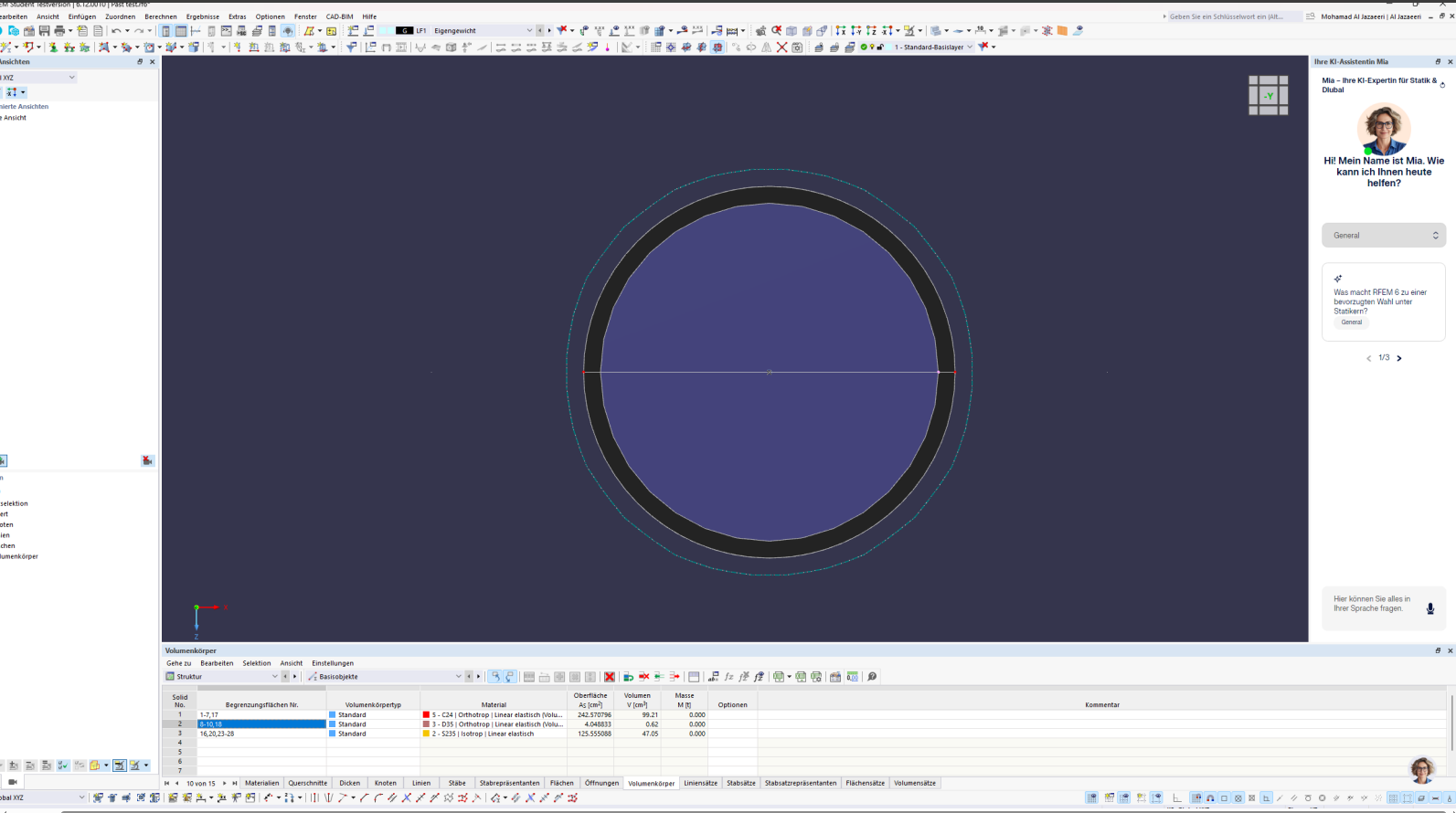

This morning, the circle shifted when applying the function. Now I am trying the same procedure again, but nothing happens anymore.

Could you please let me know what might be causing this and what I should pay attention to when using this function?

Thank you very much
Unbenannt
Unbenannt2

3

Hi Mohamadjaz,

thanks for your message!

To analyse the problem more precisely, the model file would be very helpful:

:right_arrow: Click on File → Save as and choose the following settings to reduce the file size:

image467×393 7.53 KB

:right_arrow: Then upload the file here (e.g. *.rf6, *.rs9) – this way, the community can also contribute to the solution.

:owl: Prefer not to share the file publicly? No problem – send it to me via direct message: click on my profile picture or user name → Message.

Best regards
Sandy Matula
