Bearing displacement in non-linear bearings

Product Support
, ,
1

Hi,

I have created a model of a barrel vault (geometry + loads in Grasshopper). I encountered a problem while modeling the support displacements. The following boundary conditions apply:

The arch supports have a nonlinearity (failure in tension), so they can only transfer compressive forces.

When I apply the line displacement constraint (divided into x and z components according to the inclination of the supports), I get the error message that the line is not sufficiently supported.

My question is: How can I model a support displacement and, at the same time, a gap opening in the joint?

Wehrbau.rf6 (1.3 MB)

And one more question: I was told that it is possible to display the result distributions directly in the model – that would be great in my case, as it would allow me to estimate the compressive zone height directly! Does this option exist?

Thank you very much for answering!

Lennart

3

Hi lennart,

To enter a forced displacement along a line, it is necessary that the line is supported in the direction of the forced displacement accordingly.

Please note: Nonlinearities in this direction are not supported and therefore cannot be used; more information: Line forced displacements in RFEM 6

:backhand_index_pointing_right: To display result distributions along lines, proceed as follows:

  1. Select line
  2. Click button Result distributions for selected lines

A detailed description can be found here: Result distributions in RFEM 6

:framed_picture: For clarification:

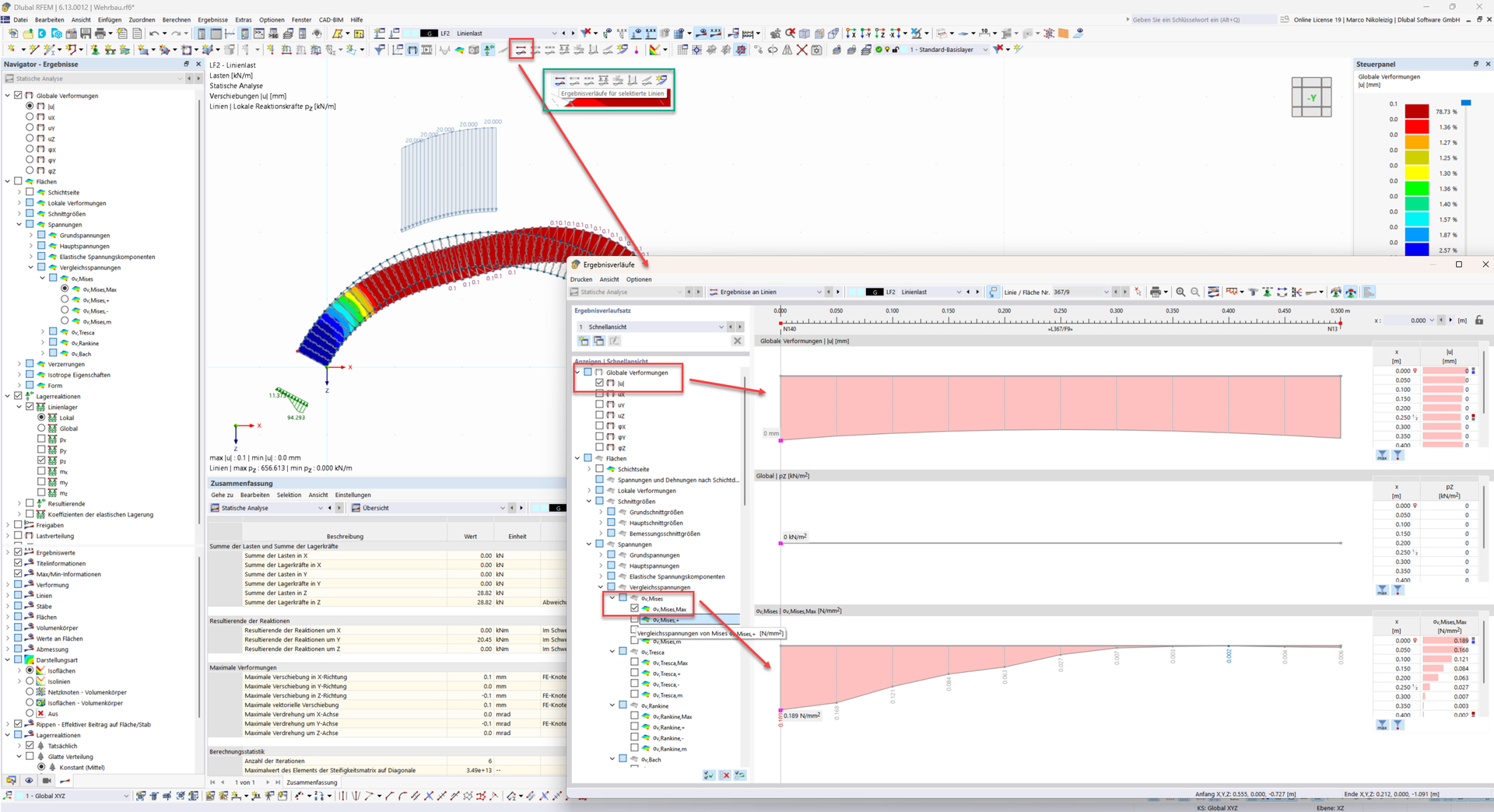

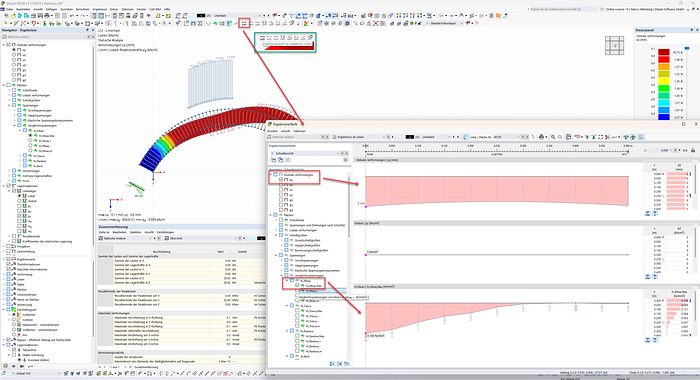

image1920×1044 890 KB

If anything is still unclear, feel free to get in touch :blush:

Best regards
Marco Nikoleizig

4

Hello Marco,

Thanks a lot in advance. Again regarding the bearings: Do you have any idea how I can "bypass" the problem and both shift my bearing and represent the gap between the bearing and the first stone?

I appreciate any help :)
Lennart
