Sheet editor => rectangular opening with rounded corners

Product Support Feature Request
1

Dear Dlubal Team,

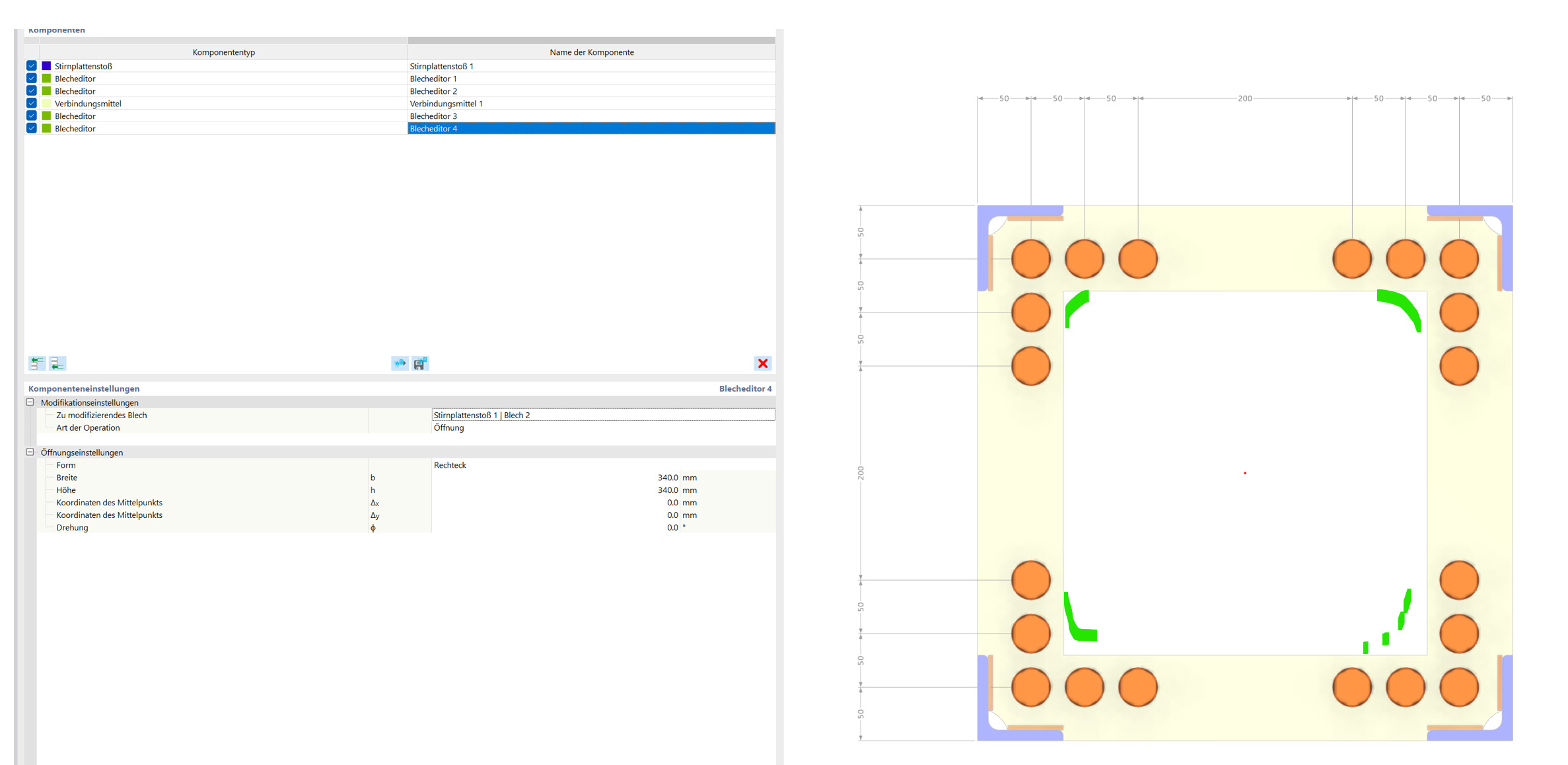

As I am currently doing an FE comparison calculation for a connection, I wish it could be modeled more efficiently. For the connection, which can initially be modeled very quickly based on the component type "end plate joint," I would like to subsequently insert a rectangular opening with rounded corners into the respective end plates. Unfortunately, it is currently not possible to round the corners of the rectangular opening; a corresponding feature would be great!

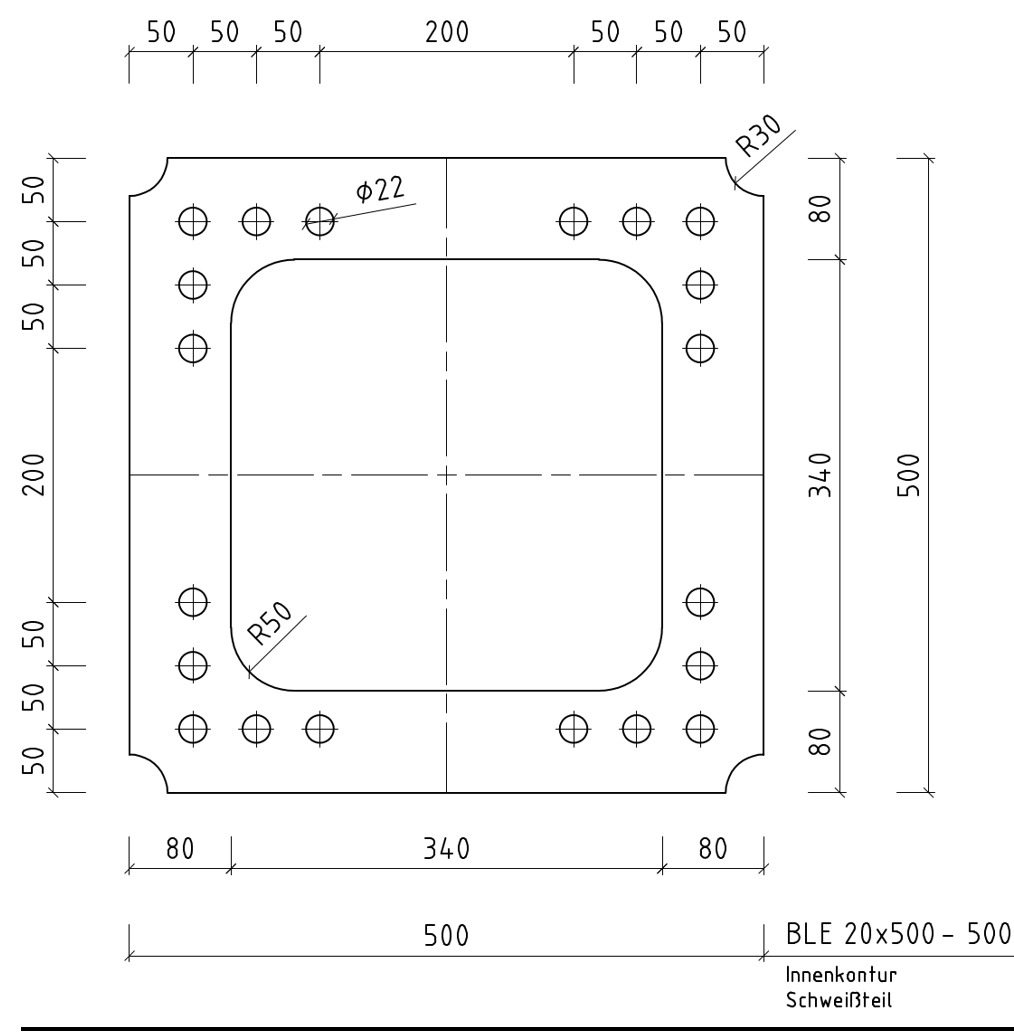

Here is the desired geometry:



Best regards, Nick

3

Hello @DeflectionPerfection,

I have documented your request.

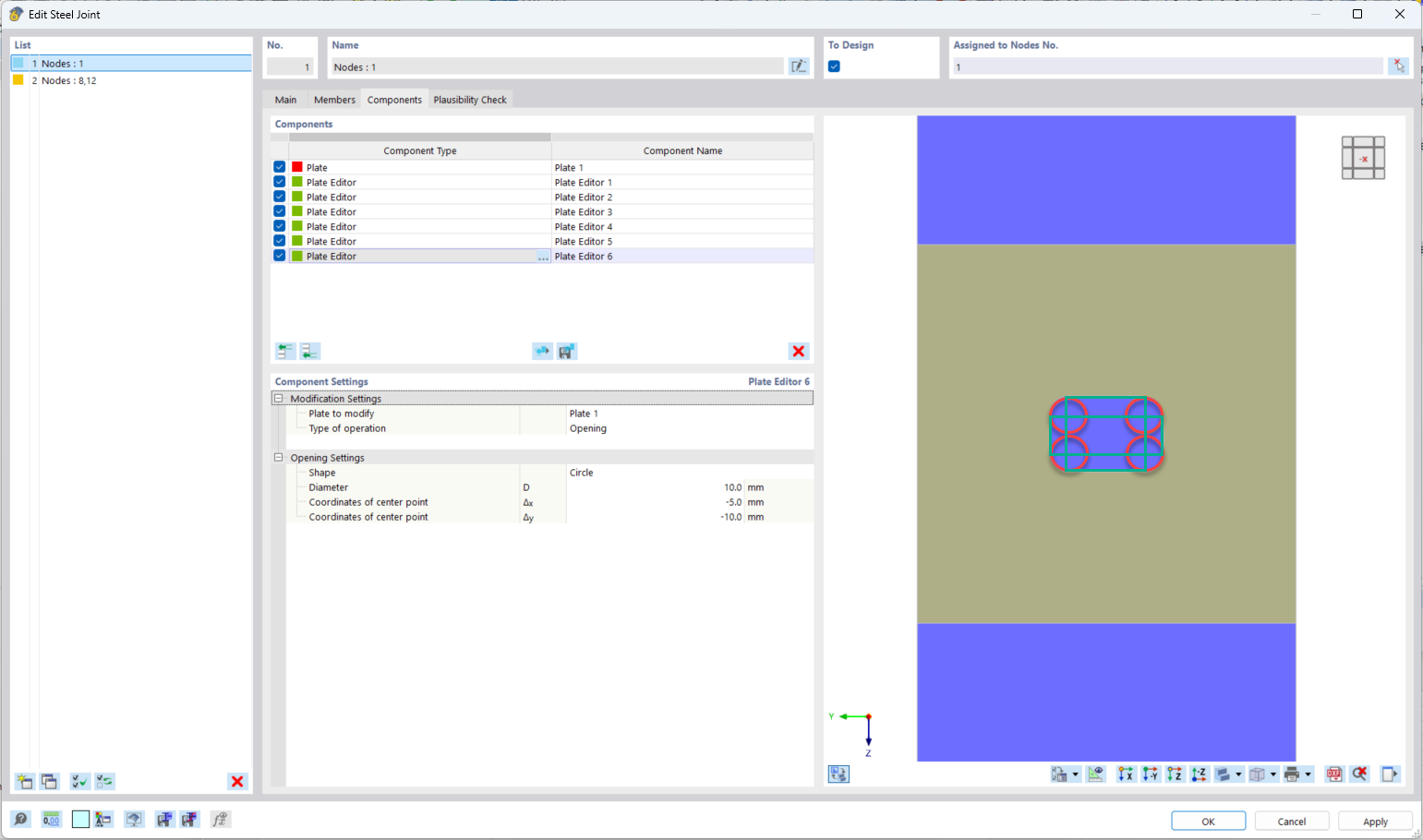

For the moment, you can achieve this (somewhat awkwardly) through 6 rod openings:


If you need such shapes more often, you can also save the components as a template.

Best regards

Fabian

1 Like
