Change timber material properties in gRPC

API & Interfaces
, ,
1

I am using gRPC to create timber material to be used in Timber Design.

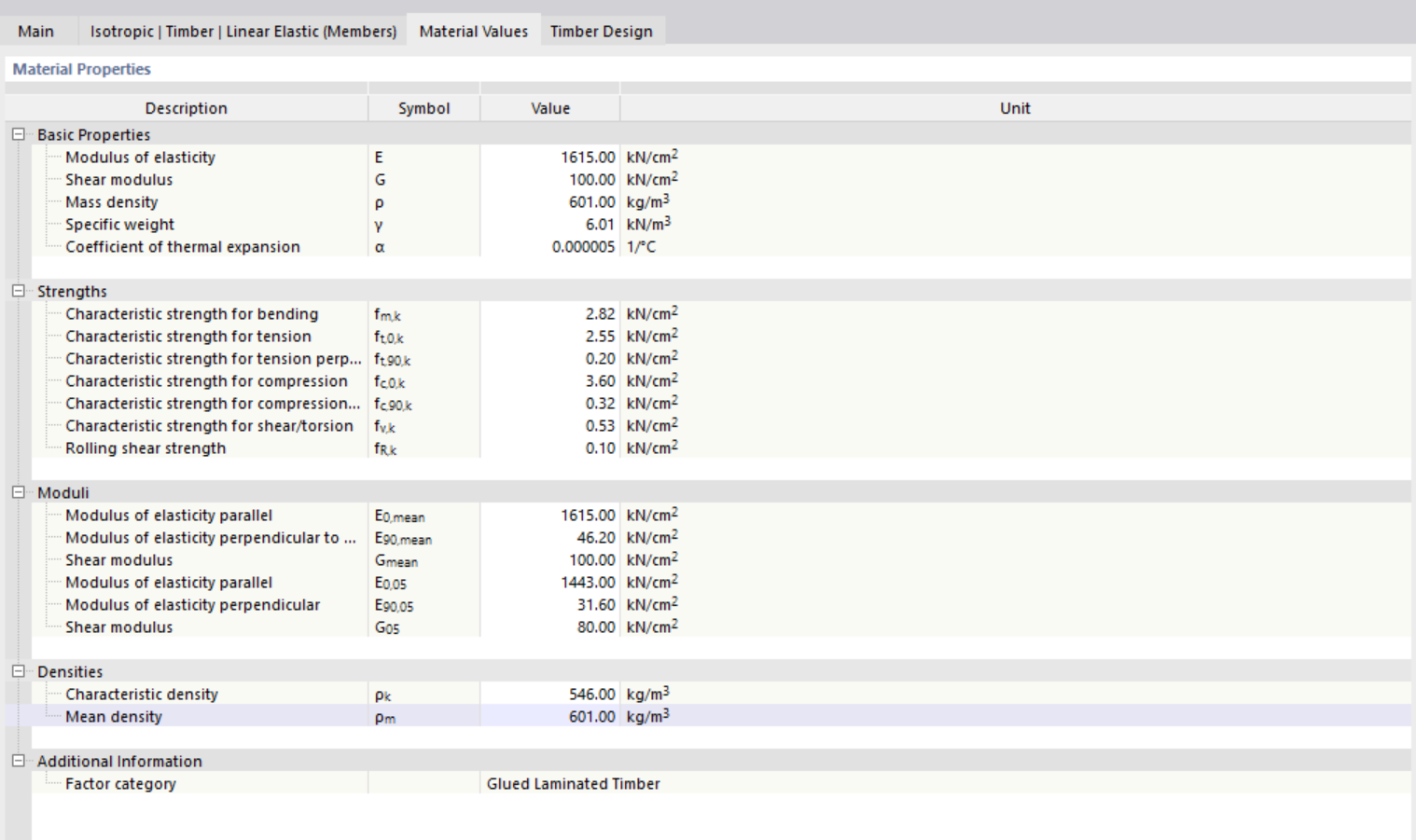

However the API documentation is not clear in how I can modify specific timber parameters such as Strenght and Moduli properties in Material Values

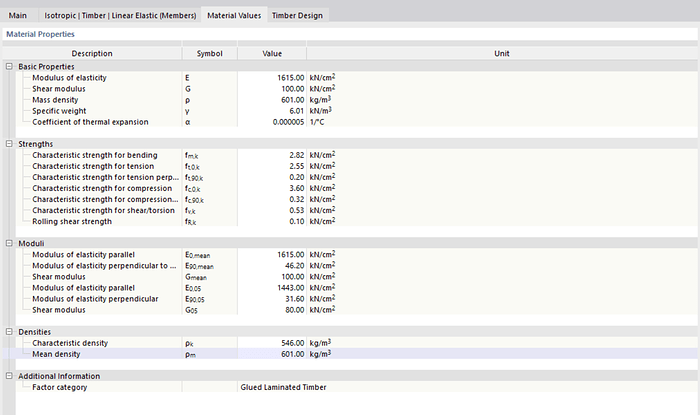

image1518×901 157 KB

It seems I need to edit properties in MaterialValuesTreeTable, but it is not clear which keys to use.

Can someone help me with that?

3

Hi marciosarto,

you'll find all needed informations in the documentation in the topic Custom Material — Dlubal API documentation.

from dlubal.api import rfem, common

with rfem.Application() as rfem_app:

    material: rfem.structure_core.Material = rfem_app.get_object(
        rfem.structure_core.Material(
            no=1
        )
    )

    # IMPORTANT: get tree table and print to get the keys shown
    material_values_tree = material.material_values.rows[0].material_values_tree
    print(material_values_tree)

    common.set_values_by_key(
        tree=material_values_tree,
        key='e',
        values=[14500000000]
    )

    # Update material
    rfem_app.update_object(
        obj=rfem.structure_core.Material(
            no=1,
            user_defined=True,
            material_values=material.material_values,
        )
    )

I hope this helps.

Best regards
Robert Milrath
