Color on the model doesn't match that in the legend

[netsonicyxf]

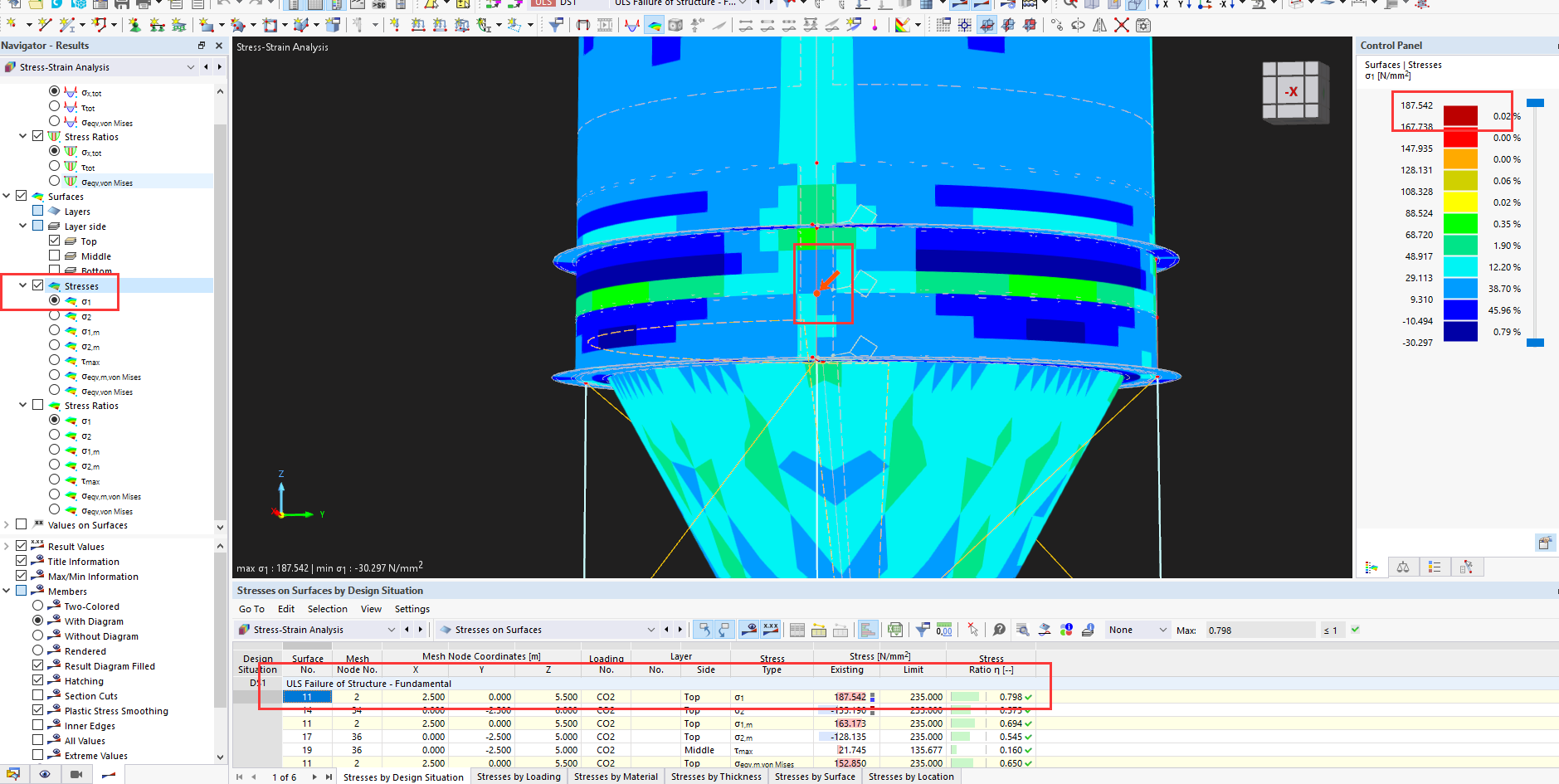

The color of 184MPa is dark red in the legend, while in the model, the arrow points to blue color.

[stefan.hoffmann]

Hi netsonicyxf,

thanks for your message!

To analyse the problem more precisely, the model file would be very helpful:

Click on File → Save as and choose the following settings to reduce the file size:

Then upload the file here (e.g. *.rf6, *.rs9) – this way, the community can also contribute to the solution.

Prefer not to share the file publicly? No problem – send it to me via direct message: click on my profile picture or user name → Message.

Best regards
Stefan Hoffmann
