Hello,
I am currently a student and am working with RFEM 6 as part of my bachelor's thesis. In this process, I need to design a reinforced concrete slab using the finite element method.
Basically, the processing has been going well so far, but I have a problem with the result cuts in the results presentation. When I display the results via a result cut, the cut length should actually be about 20 m. However, in the presentation, scales or lengths of e.g. 36 m, 40 m, or clearly deviating values partly appear. The cuts also appear partly different or not as they were actually entered in the graphical representation.
To clarify, I have attached two images: The first image shows the result cut with the course of (m_y). Here you can see the deviating or incorrect scaling of the cut length. In the second image, I am directly in the result graphic and display the course graphically. Here the course appears as it should in my opinion also be displayed in the result cut. However, it is displayed quite differently in the result cut.
Therefore, I wanted to ask whether this could possibly be a display, setting, or input error and how to solve this problem.

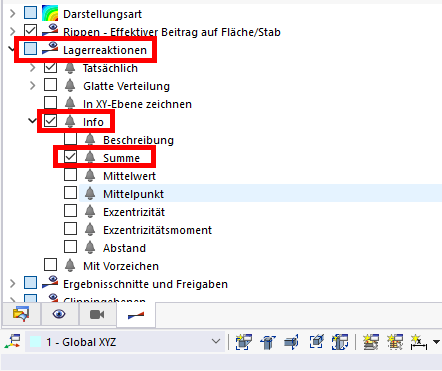

Additionally, I have a question regarding line supports: Is it possible in RFEM 6 to display the resultant total force in addition to the course of the support reactions for a line support? So far I only see the course along the line support, but I would like to output the resultant force of the respective line support.
Thank you very much in advance.
Kind regards
Click on File → Save As and choose the following settings to reduce the file size:
Don’t want to share the file publicly? No problem – send it to me via direct message: click on my profile picture or my username → Message.
