Load distribuiton using load wizards

Product Support
, ,
1

Hello everyone.

I came across a problem during a simulation: when I used a load wizard to turn area loads into member loads, I selected one of the points of the area that misses the member by about 5cm (see image bellow).

load_point
load_point719×665 26.6 KB

After the calculation, I analised the deformation of the structure and found out that the deformations on the bars next to the one on the image above are much higher than expected, as if the load was poorly distribuited (see image bellow).

deformation
deformation1265×676 218 KB

As you can see, the loads should be higher on the top beam and not on the middle beams.

Is this problem caused by poor load definition or does it have something to do with RFEM 6´s solver?
I will send the model I used for calculation.

estrutura_validação.rf6 (1.6 MB)

Best regards,

Pedro

4

Hi PedroSoares,

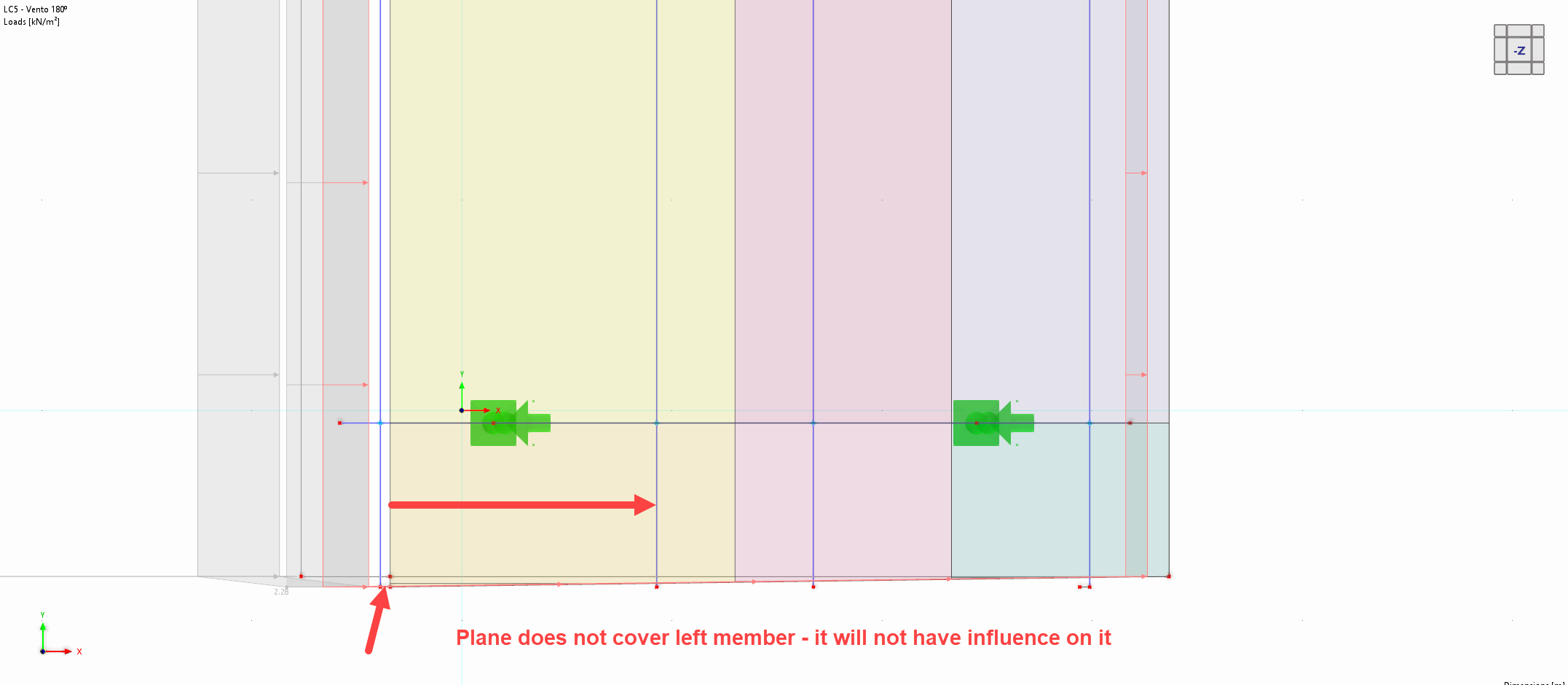

the load isn’t being distributed to all members because the Load Wizard doesn’t geometrically detect the top members in your model.

You have two options to solve this:

  • Adjust the load definition so that it correctly covers the intended members

  • Or, if needed, use Load Transfer Surfaces to ensure proper load distribution

You can find more details here:
:backhand_index_pointing_right: https://www.dlubal.com/en/support-and-learning/support/faq/005429

image2153×940 71.6 KB

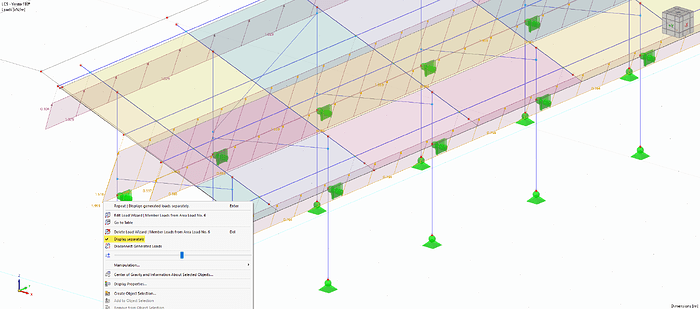

You can always as well check the load distribution in graphics:

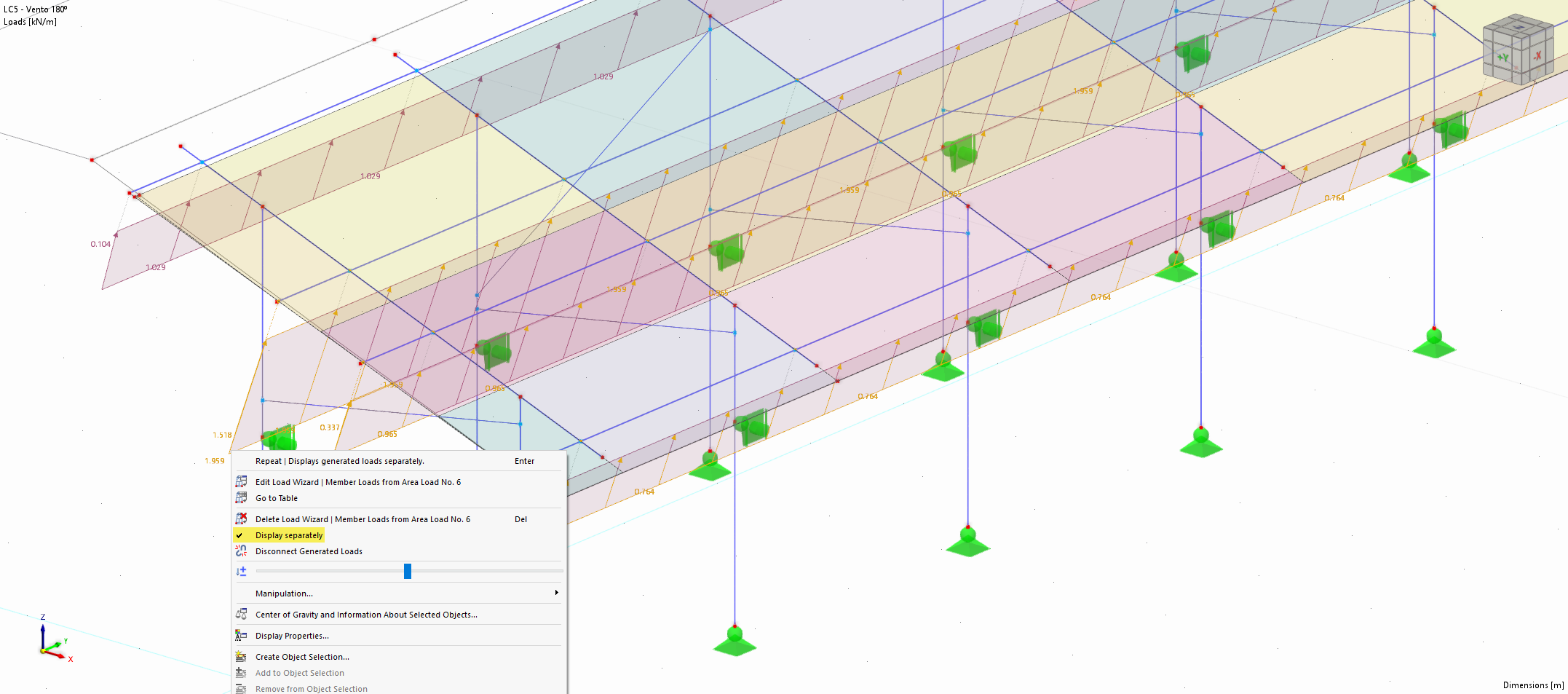

image2154×953 393 KB

If anything is unclear or you’d like to share your model for a quick check, feel free to do so — happy to help! :blush:

Best regards
Stefan Hoffmann
