Meaning of color scale for mode shape

Product Support
,
1

Hello again,

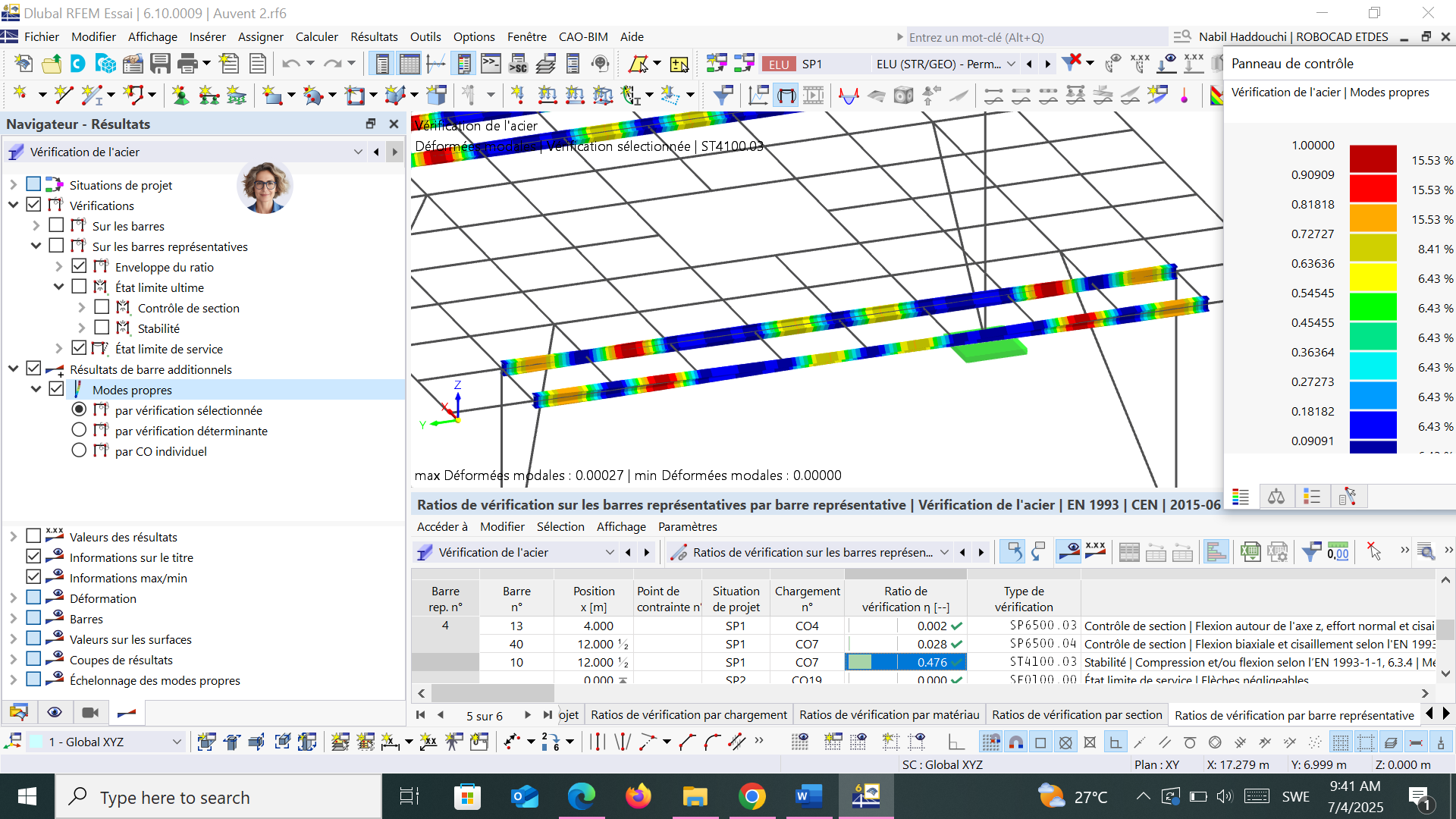

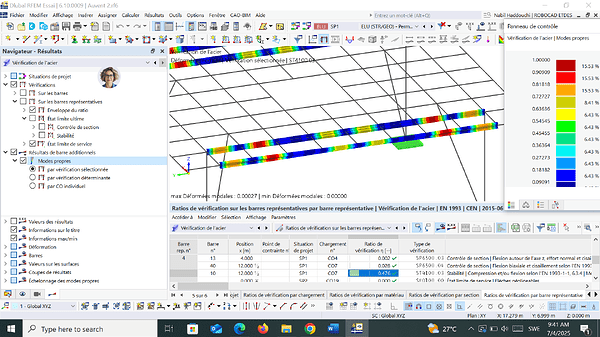

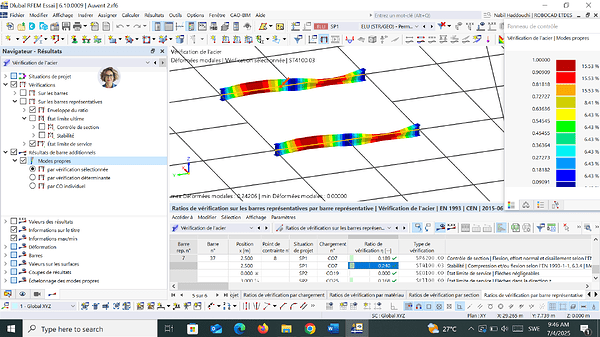

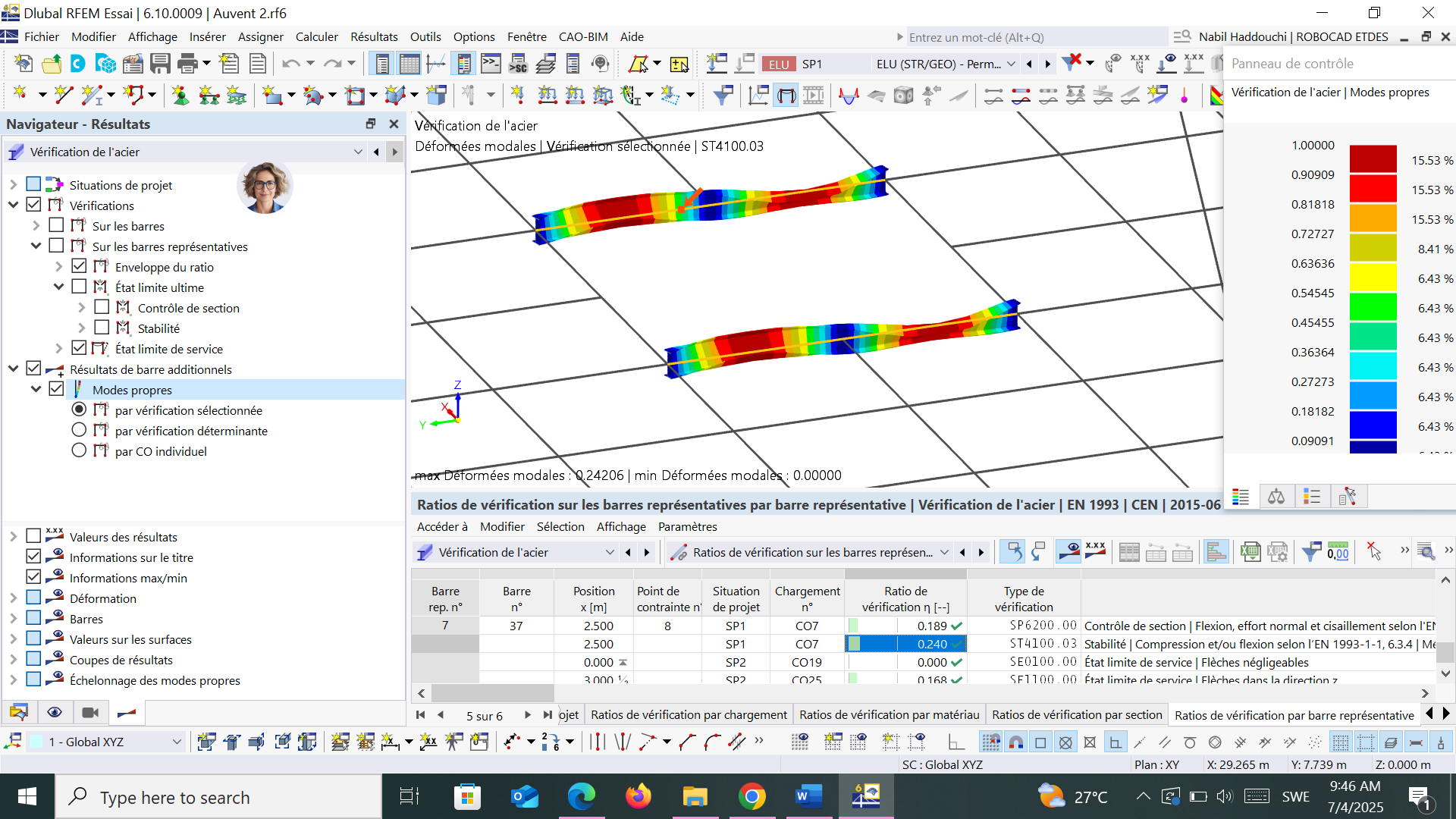

Please, what is the meaning of the scale of colors indicating the 'Mode propre'

image1920×1080 391 KB

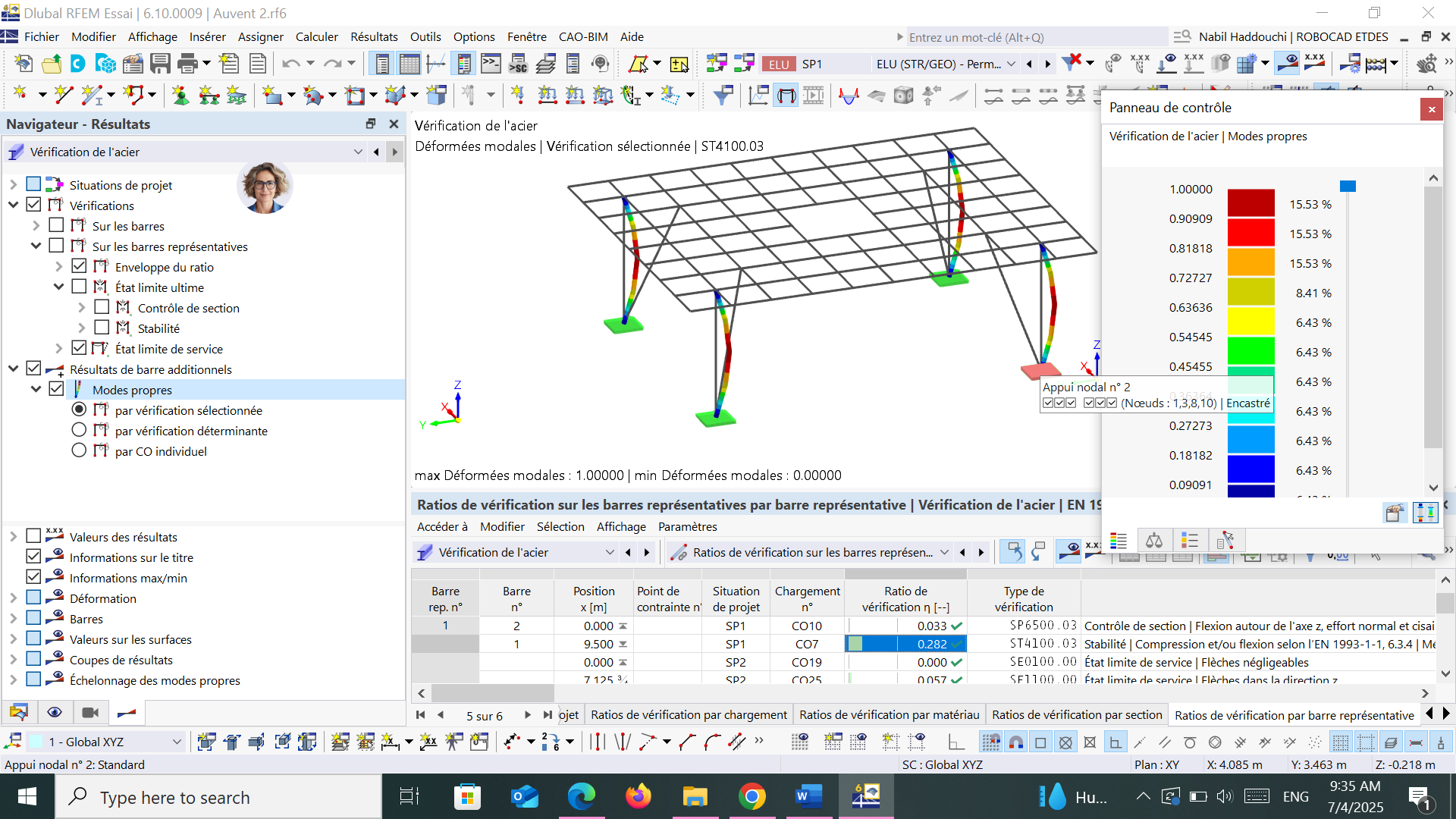

Upove i select the 'barre representative 1'

I would like to understand the meanin of this screen shot abouve

Sincerly

2

Hello again,

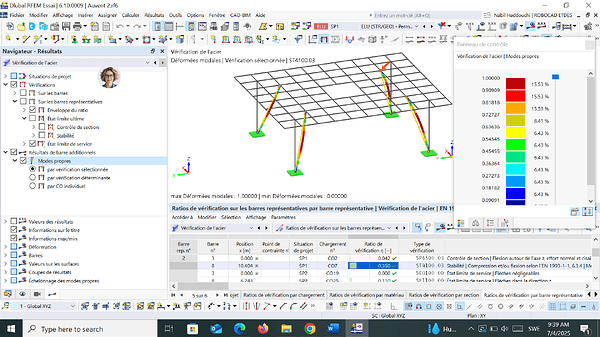

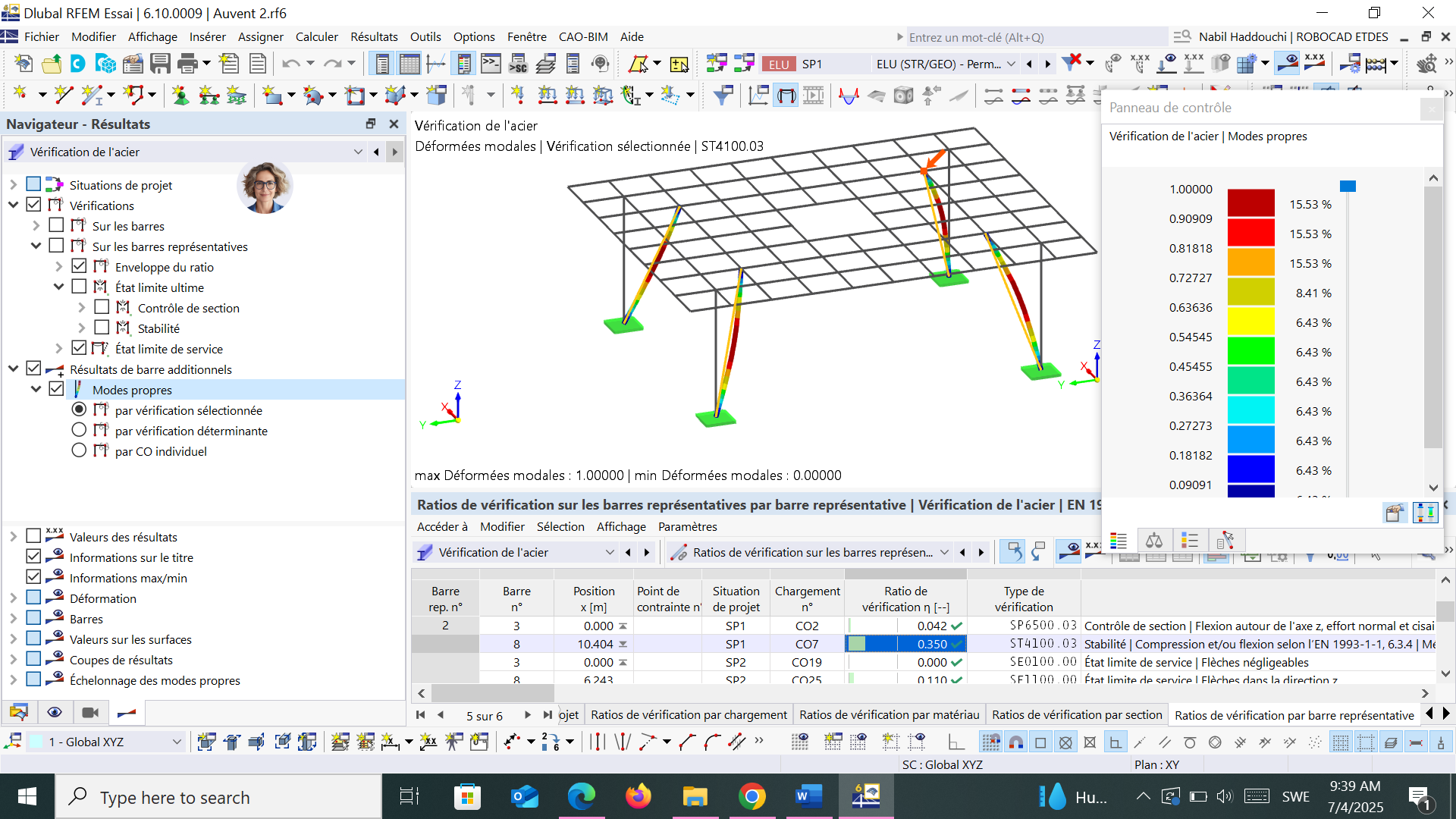

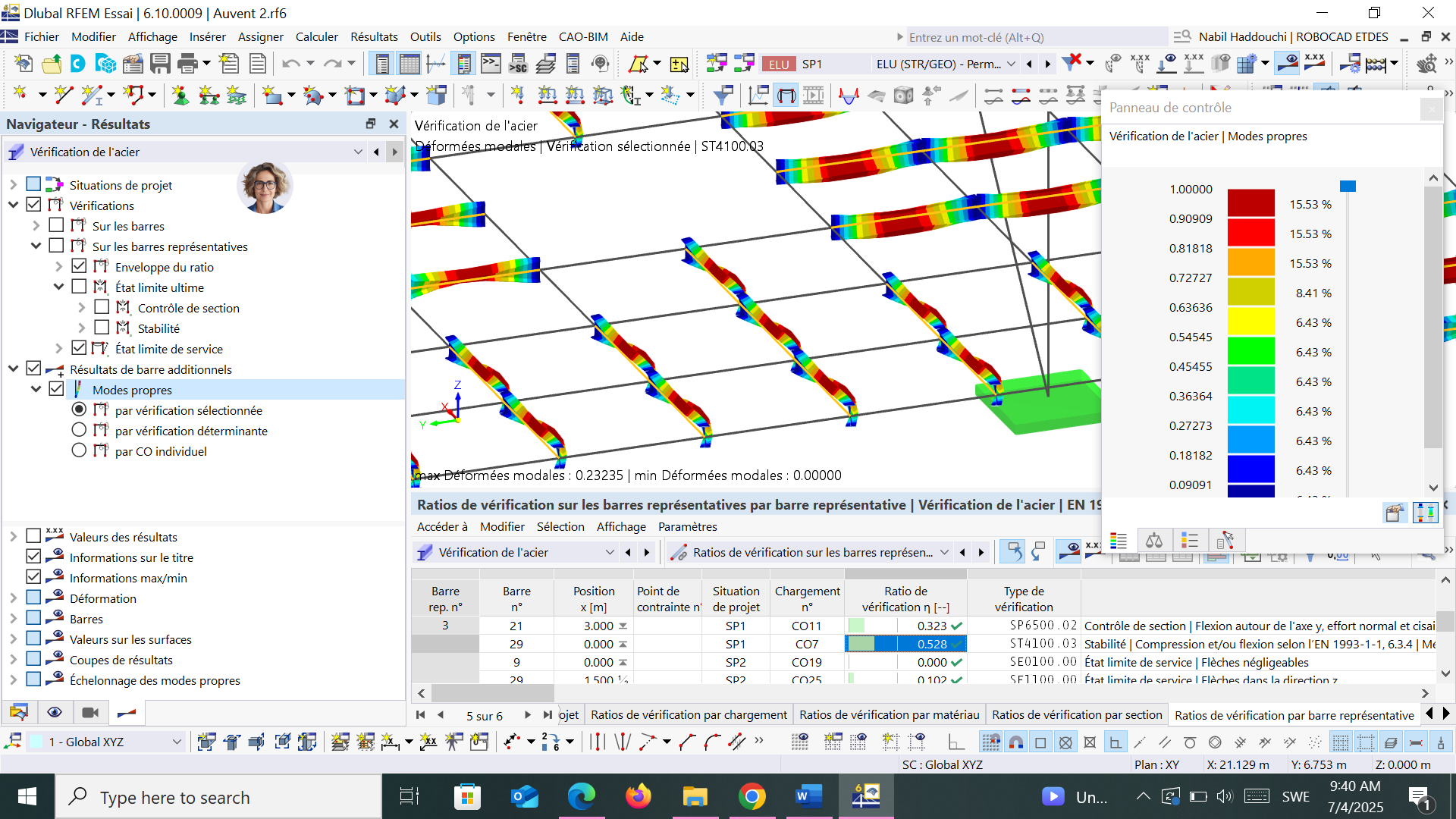

For 'barre representative 2' i have the following screen shot

image1920×1080 385 KB

Sincerly

3

Hello,

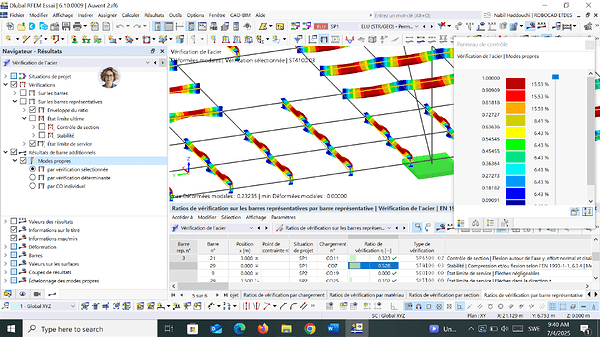

For 'Barre representative 4' i have the following screen shoot

image1920×1080 450 KB

Sincerly

4

Soory the last message is for the 'barre representative 3'
Sincerly

5

Hello,

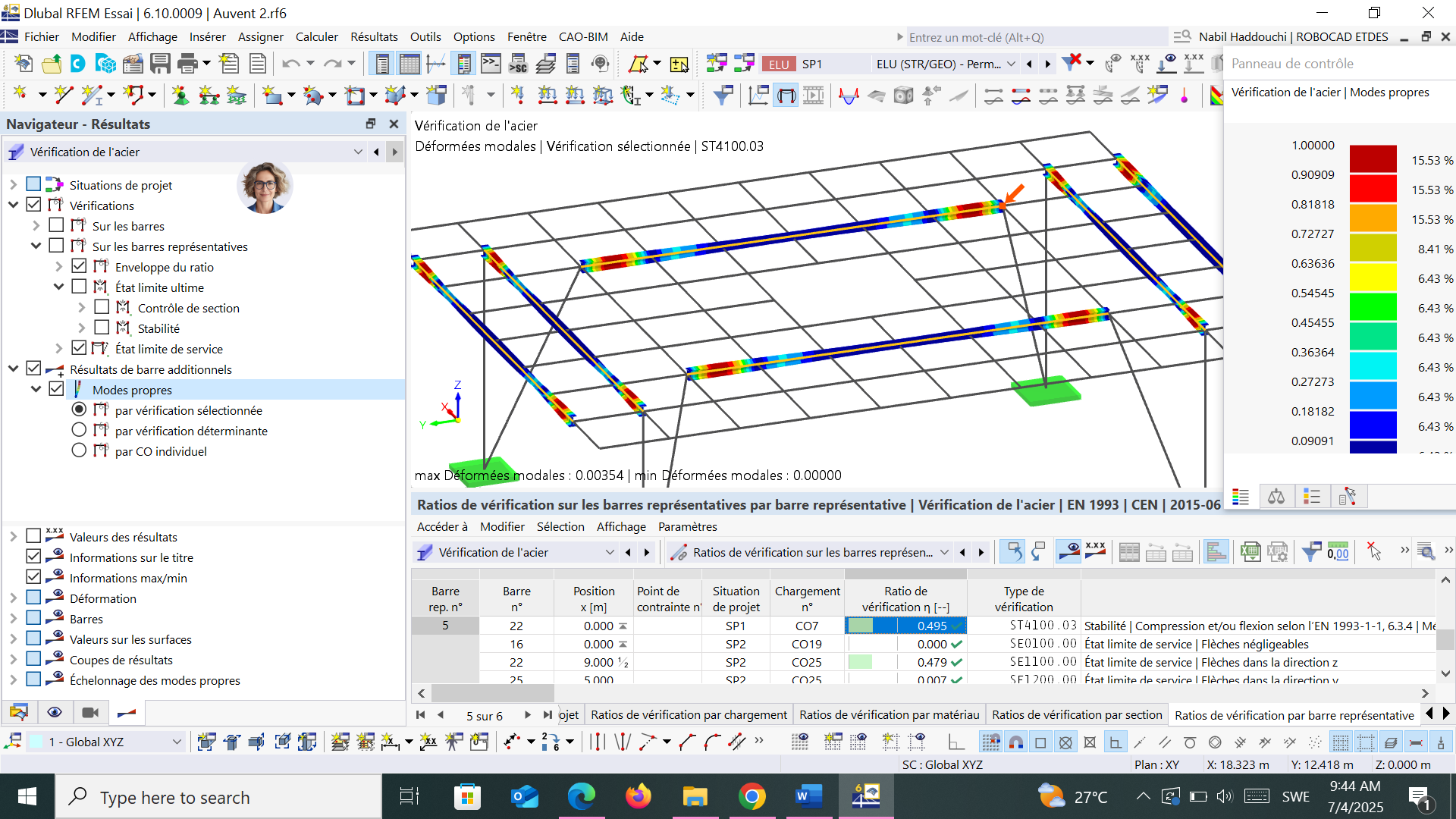

For 'Barre representative 4' the 'Mode propre' is shown bellow

image1920×1080 433 KB

Sincerly

6

Hello again,

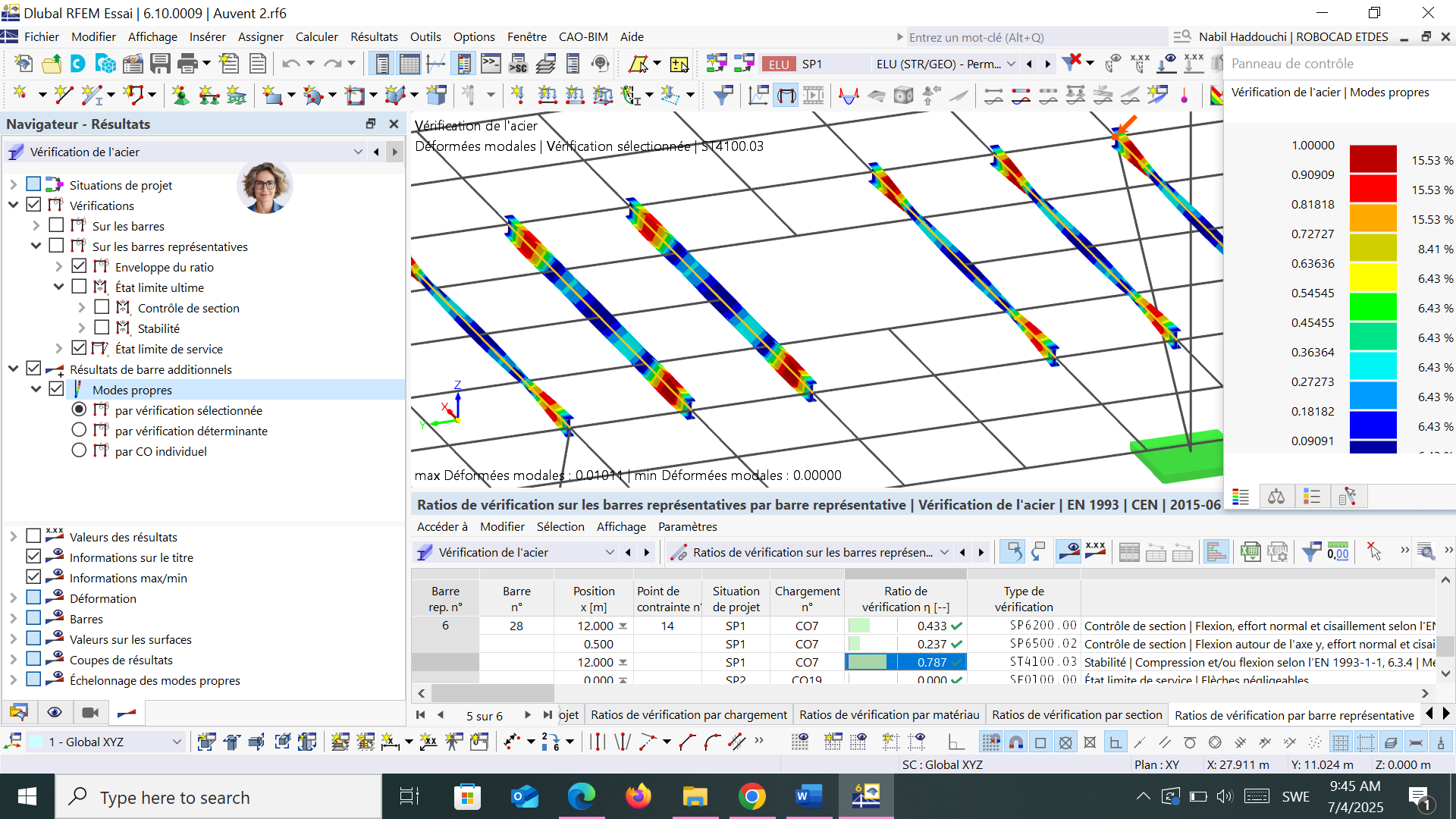

For 'Barre represetative 5' i get the following screen shoot

image1920×1080 423 KB

Sincerly

7

Hello again,

For 'Barre representative 6', i got the following deformation

image1920×1080 423 KB

Sincerly

8

Helllo again,

for the last group, i get the following mode of deformation

image1920×1080 397 KB

Sincerly

9

The link to my modele is the following:
https://we.tl/t-B5OY7iUbmD
Sincerly

11

Hi HADDOUCHI,

thank you for your inquiry.

The color scale indicates the relative deformation of the shown members due to stability failure. So, members or parts of members that are displayed red will fail first due to the largest relative displacement.

I hope that this makes it clearer for you. If you have any further questions, I'm happy to answer them.

Best Regards
Clemens Gutmann
