Create multilayer curved surface in RFEM 5

Product Support
, ,
1

Good day,

I would like to create a multilayer surface in RFEM 5. I found out that in RFEM 6 you can select the stiffness as "multilayer". However, this is not possible in RFEM 5.

Therefore, the question is how to model a multilayer surface in RFEM 5? In my case, one layer should consist of plywood and one of asphalt.

Thank you very much and best regards

3

Hi MoRe19,

For modeling multilayered surfaces in RFEM 5 you need the add-on RF-LAMINATE.

:backhand_index_pointing_right: You can find the corresponding manual here:
https://www.dlubal.com/de/webfile/003290/3727552/rf-laminate-handbuch-de.pdf

:wrench: Define materials for the layers

You set the materials of the individual layers via the material database:

  • See page 29, chapter 3.2 in the manual
  • It explains how to select and use existing materials

If your desired material is not available, you can easily create it yourself:

  • Open the material database
  • Create a new material entry
  • Define the corresponding material parameters

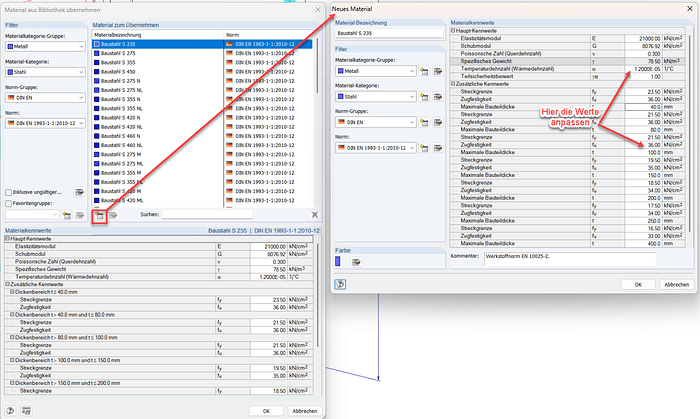

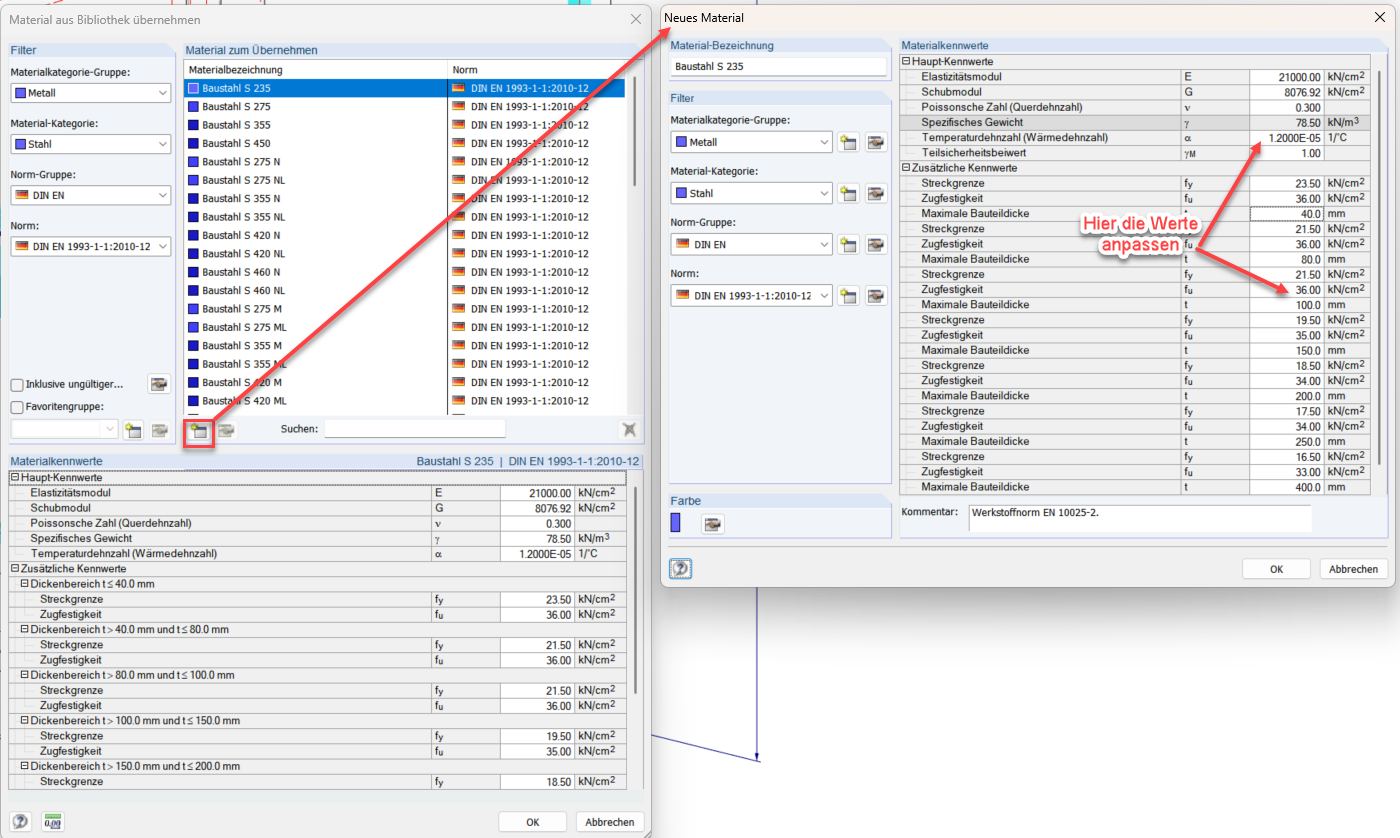

(see also the following image) :camera:

image1400×838 366 KB

If you have any further questions, feel free to ask – I’m happy to help! :blush:

Best regards
Marco Nikoleizig
