Modeling a free polygonal load

[Syd_Barrett]

Hello everyone,

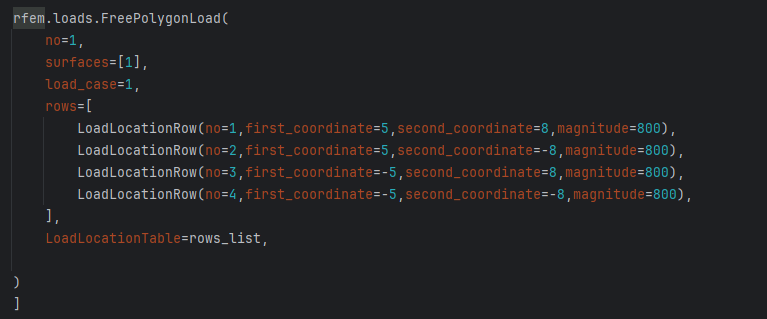

I am currently having trouble understanding the structure for creating a free polygon load in Python. What am I doing wrong?

[rebecca.goebel]

Hello @Syd_Barrett,
the definition of the load_location variable works best with an auxiliary variable for the LoadLocationTable. The variable can be defined with the following code:

locations = rfem.loads.FreePolygonLoad.LoadLocationTable(
        rows=[
            rfem.loads.FreePolygonLoad.LoadLocationRow(
            first_coordinate=5.0,
            second_coordinate=3.5
        ),
        rfem.loads.FreePolygonLoad.LoadLocationRow(
            first_coordinate=2.0,
            second_coordinate=5.0
        ),
        rfem.loads.FreePolygonLoad.LoadLocationRow(
            first_coordinate=1.866392129,
            second_coordinate=2.291674693
        ),
        rfem.loads.FreePolygonLoad.LoadLocationRow(
            first_coordinate=3.79408619,
            second_coordinate=2.188892957
        )
        ]
    )

This variable can then simply be assigned to the load_location variable when creating the free polygon load.

Best regards,
Rebecca Göbel
