Modelling steel sections inside concrete sections

Product Support
, , ,
1

Hello everyone.

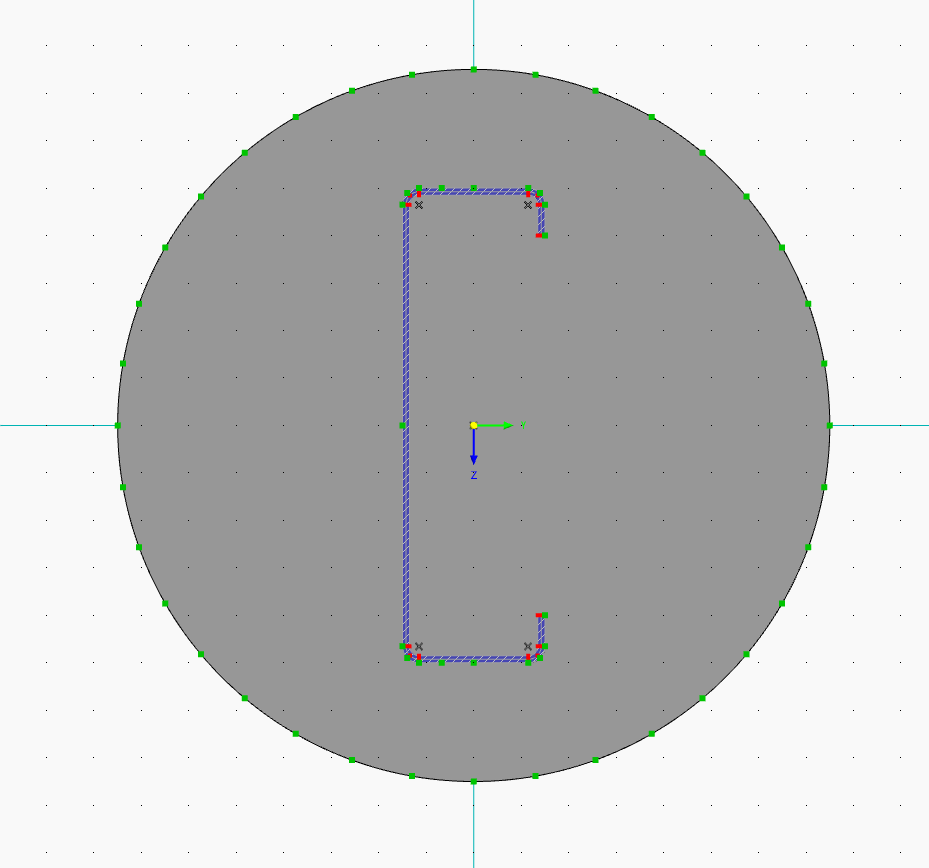

I´m trying to model a thin-walled C section that will be placed inside a concrete section (see image bellow), but I cant find a way to do it.

secção
secção929×868 21 KB

When I try to calculate the section using RSECTION, it says the sections are overlaping and stops the calculation.

Is it possible to model this section? If it is, how do I do it?

3

Hi PedroSoares,

Yes, such cross-sections can be modeled in RSECTION. :blush:

Please first follow these steps:

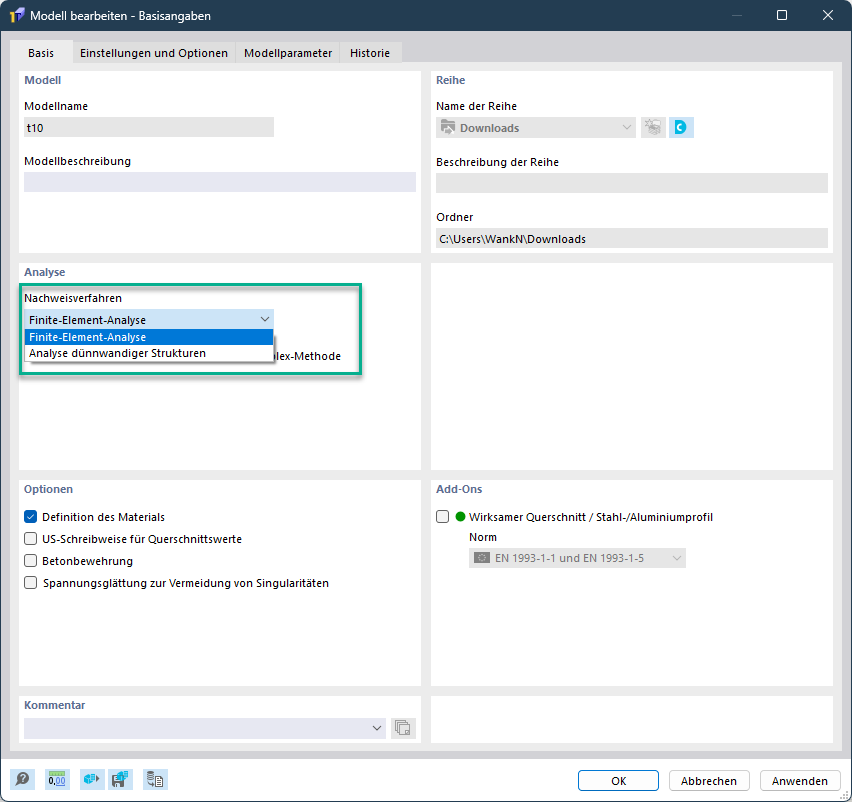

  1. Activate Finite Element Analysis
    Make sure that Finite Element Analysis is selected in the Basic Data.


  2. Avoid Overlapping
    Ensure that the steel profile does not overlap the concrete cross-section. To guarantee this, you need to create an opening in the concrete cross-section.
    The boundary lines of this opening correspond to the boundary lines of the steel cross-section.

If the error message still appears afterward, please send us your model so that we can take a closer look. :face_with_monocle:

Additional Note:

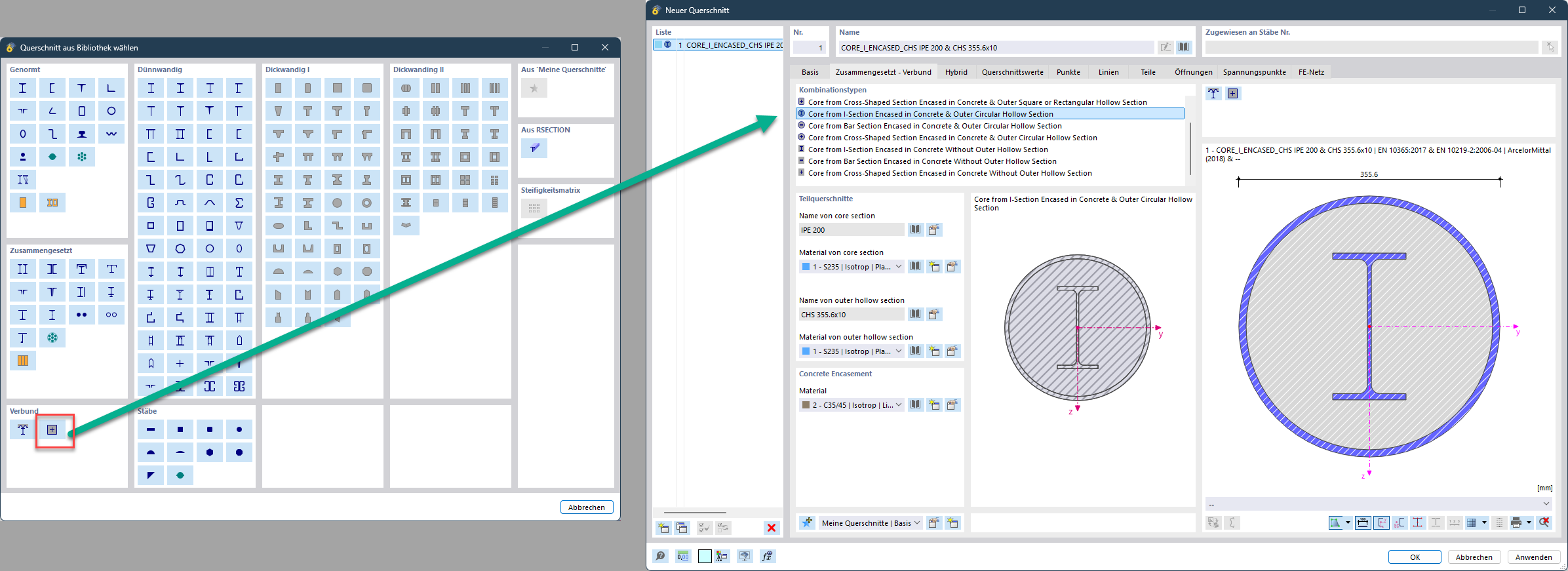

Recently, there is a new cross-section category in RFEM 6. Your exact cross-section is not yet included, but it might be worth taking a look. :magnifying_glass_tilted_left:


Best regards
Niklas Wanke

1 Like
4

Hello @niklas.wanke .

First, I want to thank you for the help and information you already gave.

Now, I´ve tried to apply the method you explained, but I still can´t calculate the section.

I will send you the model for evaluation.

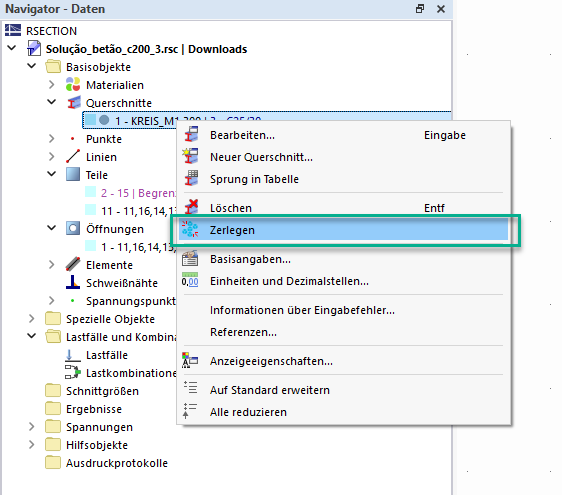

Solução_betão_c200_3.rsc (1.0 MB)

Could you explain what I´ve done wrong?

Best regards,

Pedro
