📥 RFEM Model: Steel Purlin Connections

Showcase
, ,
1

Check out these RFEM models to enhance your skills and:

  • See how others set up and analyze models
  • Explore advanced features, including specialized add-ons
  • Pick up ideas and perspectives

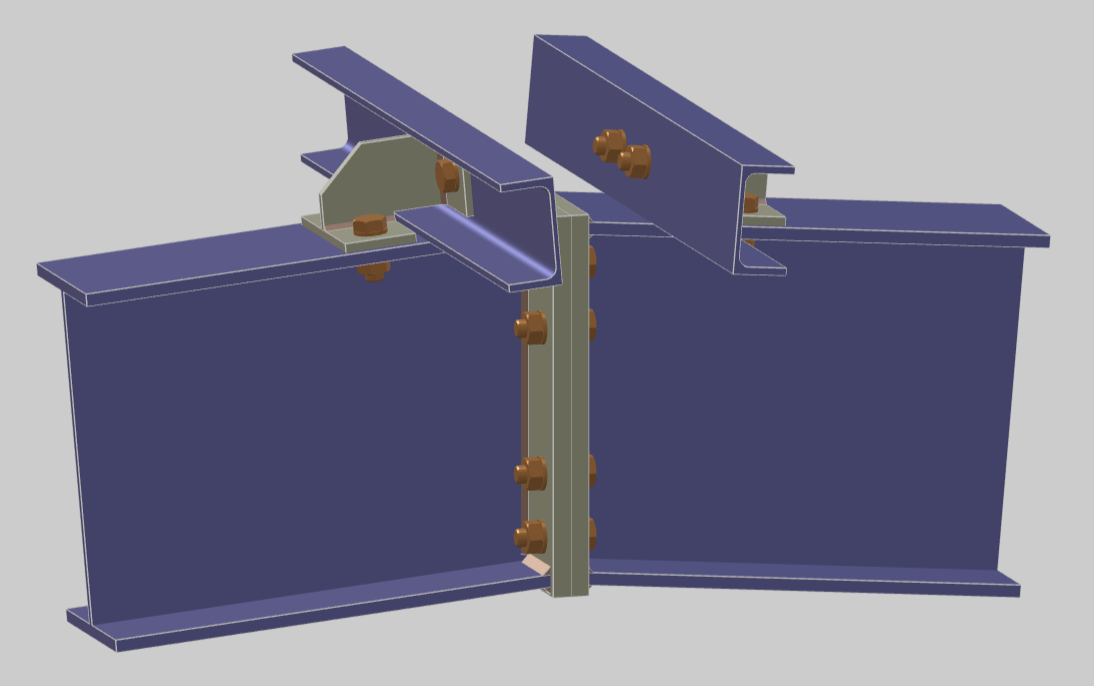

Ridge Purlin to Roof Beam
Ridge Purlin to Roof Beam1094×686 49.4 KB

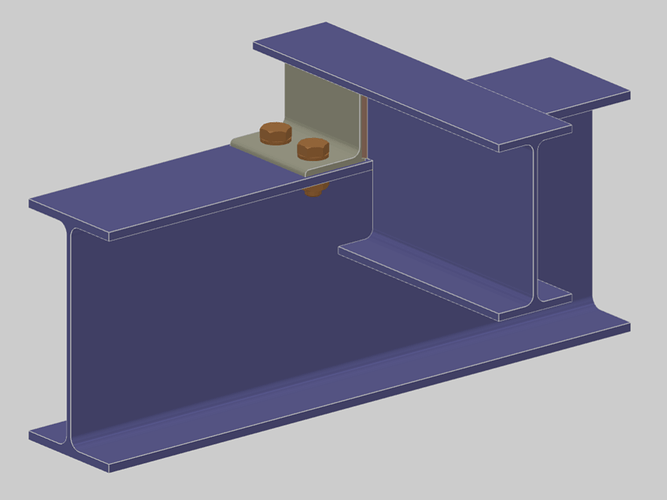

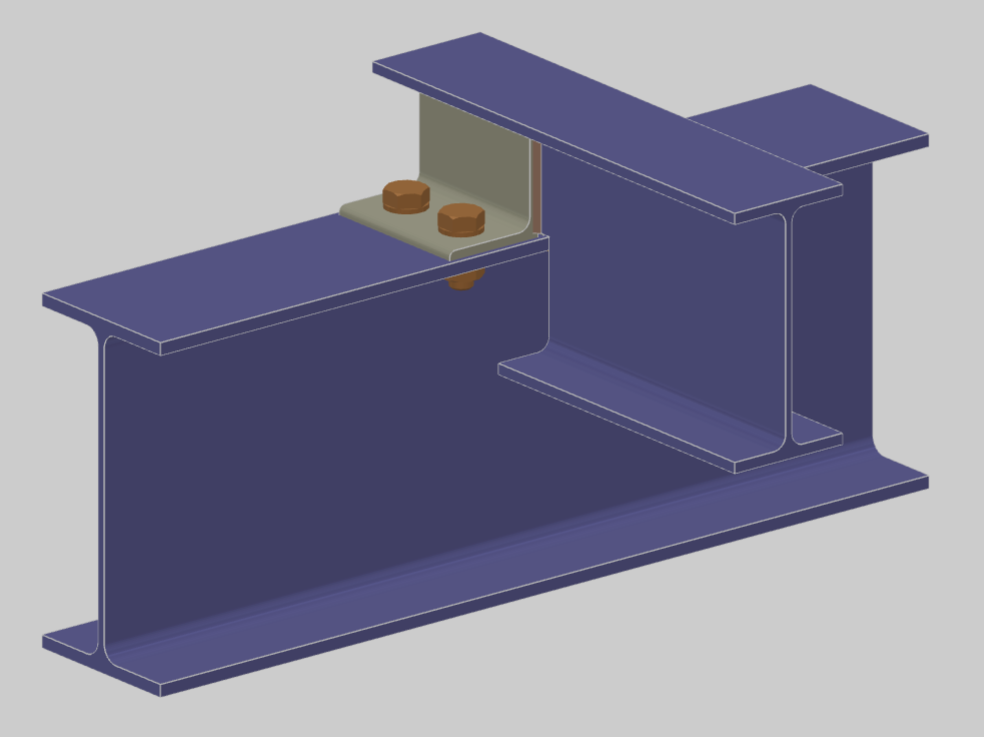

Purlin to Roof Beam via Equal Angles
Purlin to Roof Beam via Equal Angles984×737 45.5 KB

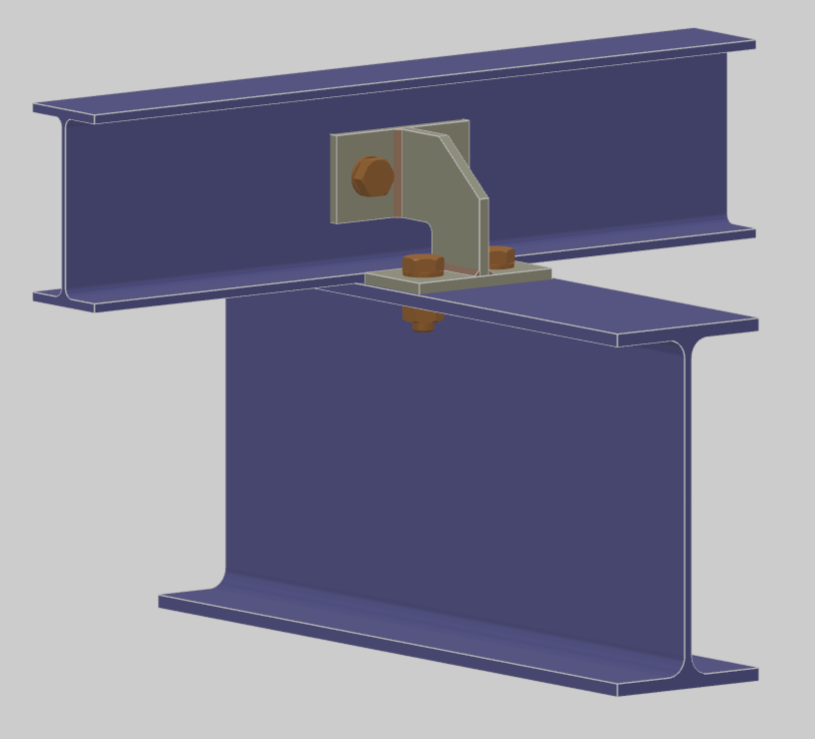

Purlin to Roof Beam via Bracket
Purlin to Roof Beam via Bracket815×739 36.6 KB

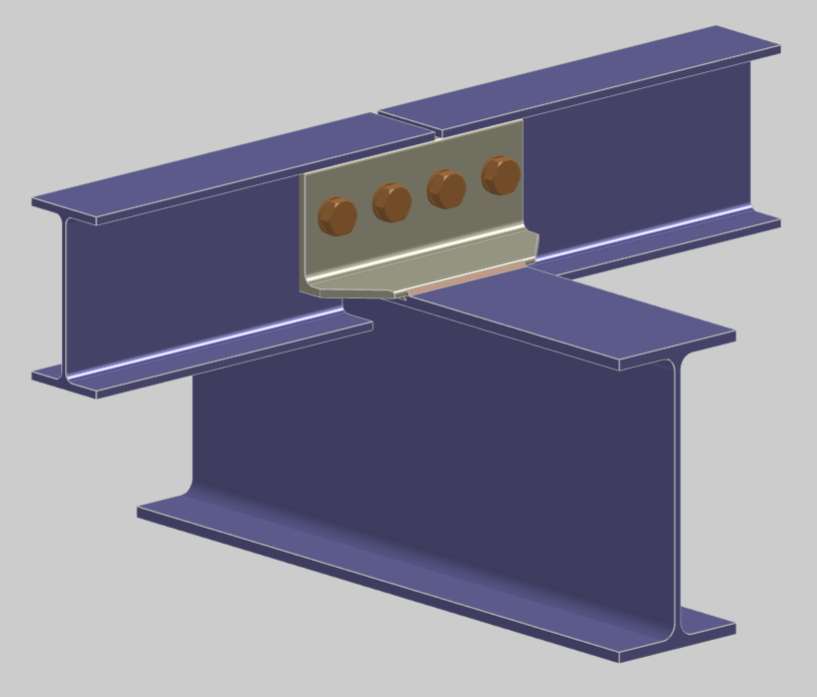

Purlin to Roof Beam
Purlin to Roof Beam773×698 45 KB

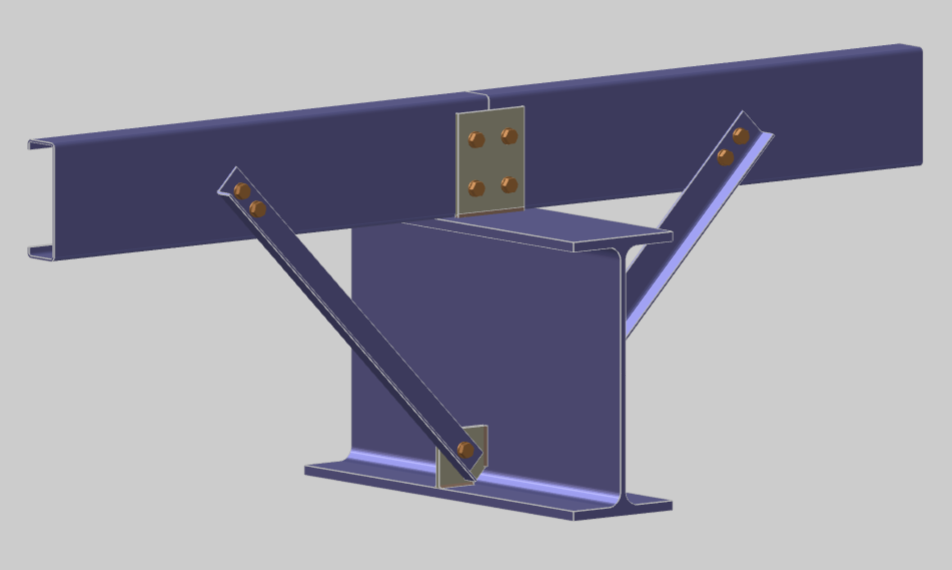

Purlin with Fly Brace to Roof Beam
Purlin with Fly Brace to Roof Beam952×570 41.7 KB

Purlin to Beam via Unequal Angle
Purlin to Beam via Unequal Angle817×697 42.1 KB

Steel Purlin Connections

Steel purlin connections are essential structural details used to transfer loads between purlins and the supporting roof structure. They typically consist of bolted or welded steel components such as plates, brackets, angles, or end connections. Depending on the structural system and connection type, they can be designed for various loading, fabrication, and installation requirements.
