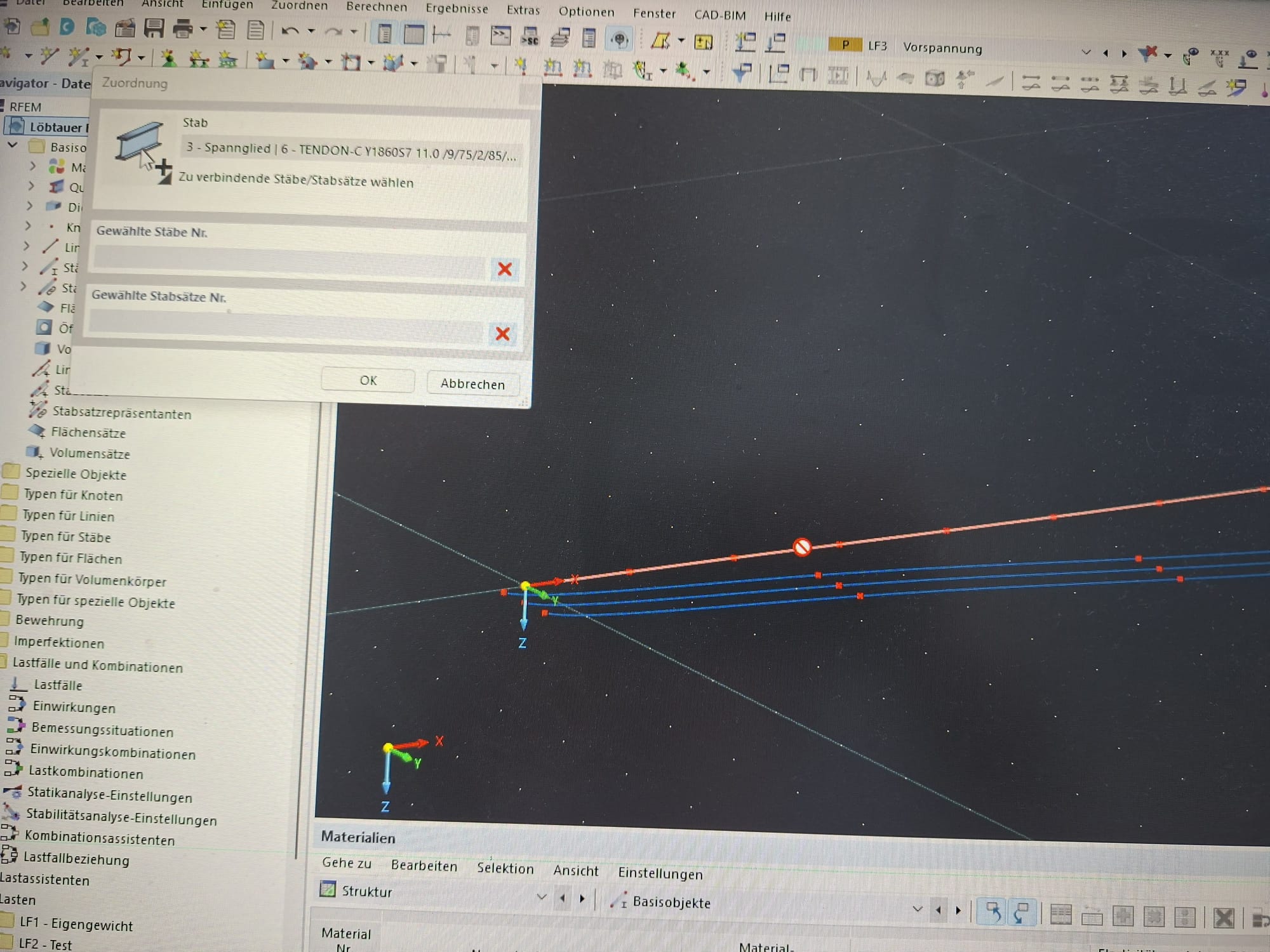

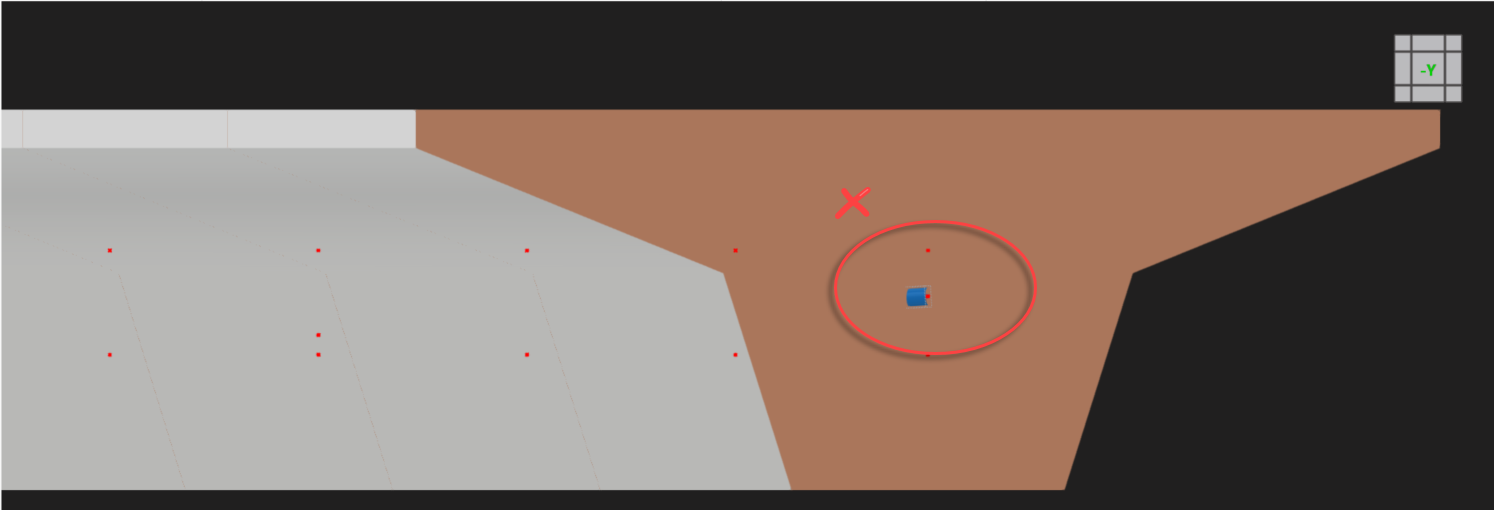

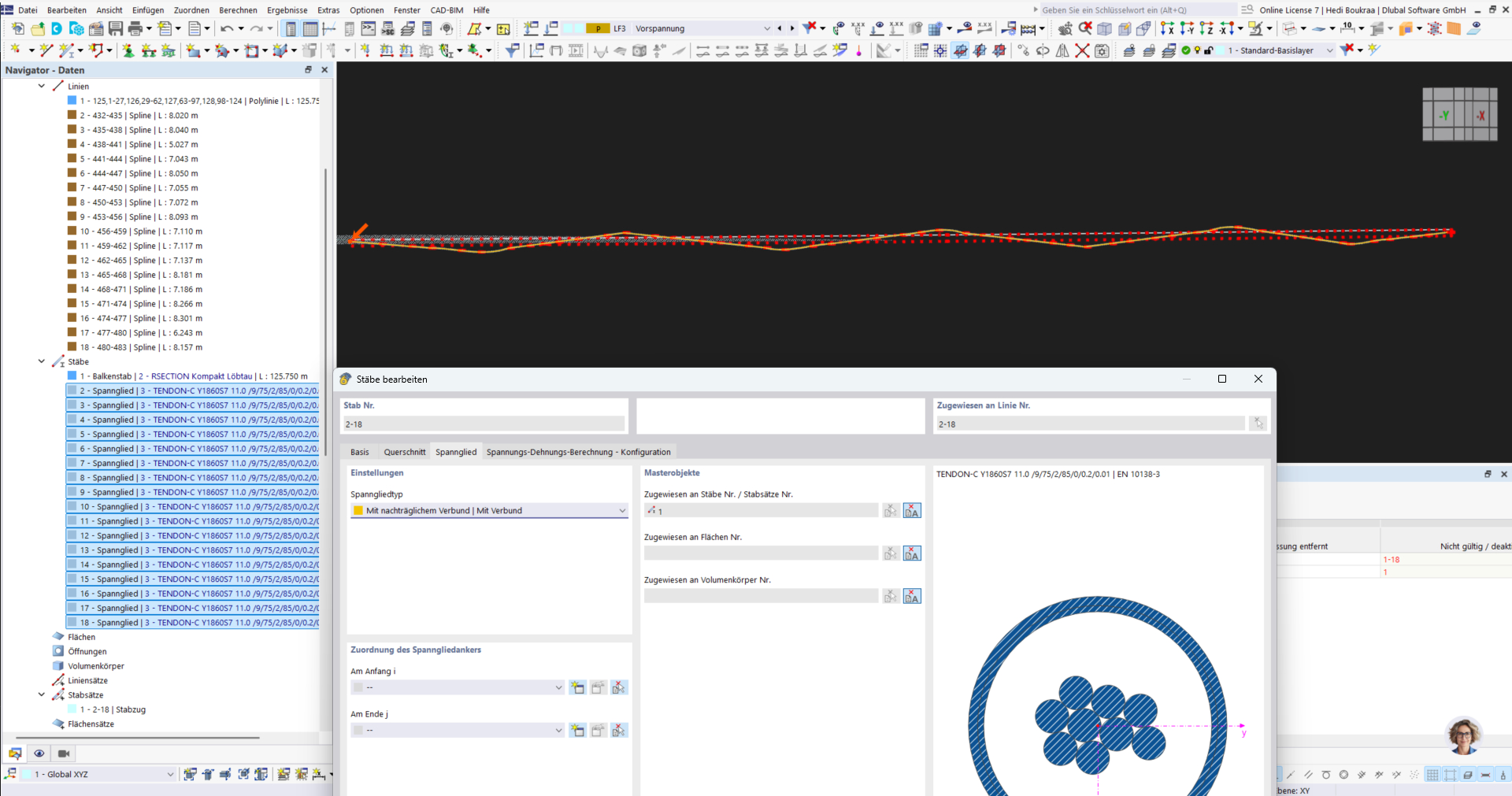

Hello, for the attached model I would like to model prestressing strands with variable profiles. Ideally, I want to model 32 of them in the end, if it works computationally. Initially, I had the middle one of the 3 prestressing strands as a polyline and that worked; it was somehow automatically already connected with the master object Beam 1. However, I used very many nodes there, so that the file basically only lagged and crashed. I then decided to use fewer nodes and tried it with a spline. I wonder why I cannot connect them with the master object Beam 1 in the properties of the prestressing strands? Beam 1 is actually a bridge cross-section as a plate girder, inserted via Rsection. Could you help me with this? Many thanks in advance. Feel free to call me if you have any questions! It should actually be possible to apply a prestressing force and have everything calculated. Either it did not work with the master object or there were problems with error 191 internal calculation error.
I would appreciate your support.
Löbtauer Brücke A-E.rf6 (1.7 MB)
,
