Hello everyone,

I am currently modeling a timber panel wall with a large opening. According to Colling and Janßen (Bracing of Timber Panel Buildings), I need ribs at the height of the lintel, horizontal distribution ribs, so that I can account for the panels above and below the opening and, unlike in the Eurocode, consider the entire wall.
To verify my manual calculation, I would like to model it exactly the same way. I have inserted a beam member at the height of the lintel, integrated the corresponding lines into the surface, and now want to connect this with the sheathing (rigid coupling). Unfortunately, various error messages keep appearing about intersecting points and lines and finally "The projection line is not integrated into the surface."

Can anyone help me with this, or does this function (still?) not exist?

Thanks a lot in advance and best regards

Valentin

Dlubal Support 2

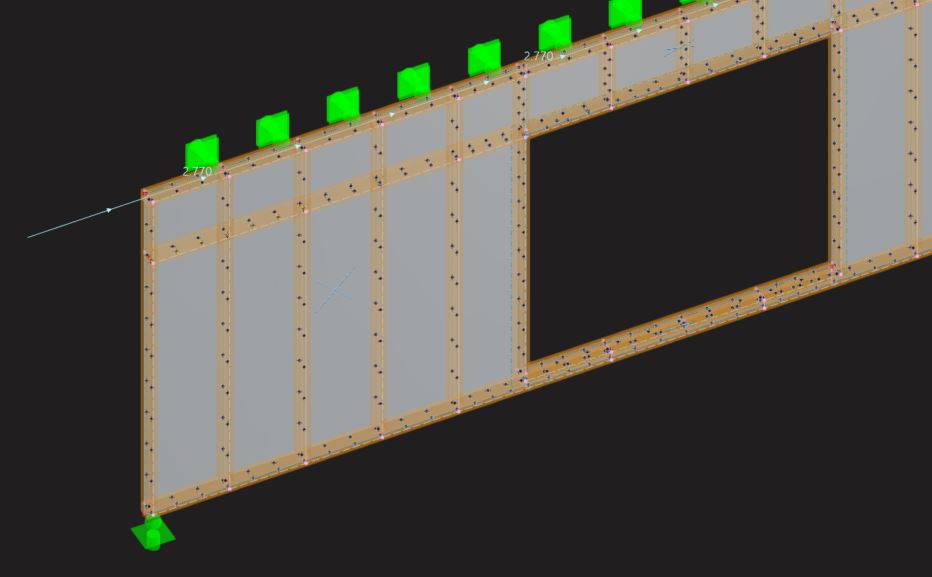

Dlubal Support 2932×577 33 KB

Dlubal Support 5

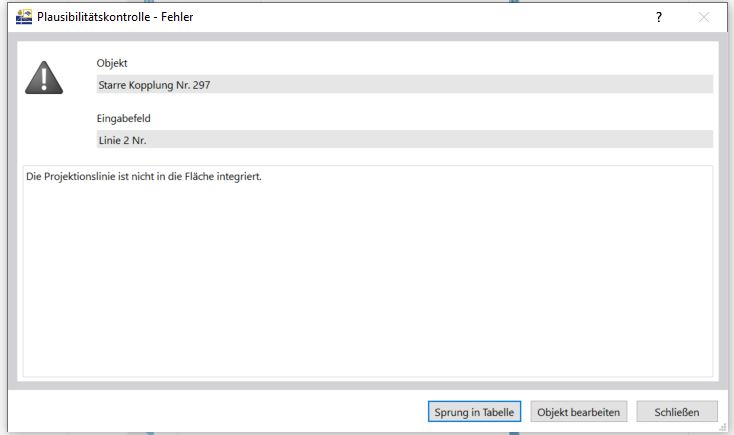

Dlubal Support 5734×435 17.8 KB

2

Hi Valle_S,

Thank you for your message!

To analyze the problem more precisely, the model file would be very helpful:

:right_arrow: Click on File → Save As and choose the following settings to reduce the file size:

image467×393 8.19 KB

:right_arrow: Then upload the file here (e.g. *.rf6, *.rs9) – this way, the community can also contribute to the solution.

:owl: Don't want to share the file publicly? No problem – send it to me via direct message: click on my profile picture or my username → Message.

Please feel free to provide me with the model including the problem-causing lines so that I can better understand your approach to modeling.

Best regards
Maximilian Wittmann

4

Hello Maximilian,

attached is the file.

IW 01-1 - Kopie.rf6 (2.1 MB)

5

Hi Valle_S,

ich habe mir einmal dein Modell angesehen. :face_with_monocle:

Hierbei ist mir aufgefallen, dass die von dir erzeugten Linien des Verstärkungsbalkens, die innerhalb der Beplankungsflächen liegen, nicht in diese Flächen integriert sind. So ist beispielsweise Linie 777 nicht in der Fläche 28 integriert. Dies erkennt man auch bei einem Doppelklick auf die Fläche -> Reiter „Integriert“. Hier fehlen die entsprechenden Linien-Nummern. Auch ist mir aufgefallen, dass in diesem Fenster die Automatische Objekterkennung deaktiviert ist. Hast du diese Einstellung vorgenommen und aus welchem Grund? :thinking:

Viele Grüße
Max
