Steel joint does not allow me to select the two reference members

Product Support
, ,
1

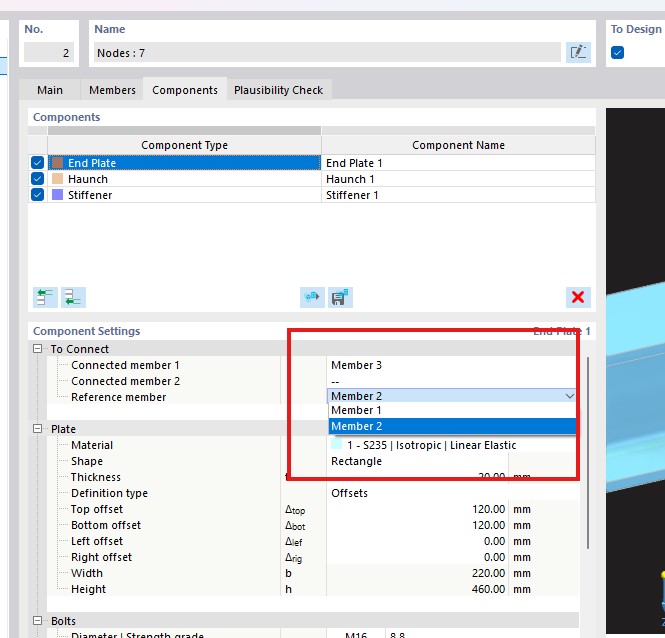

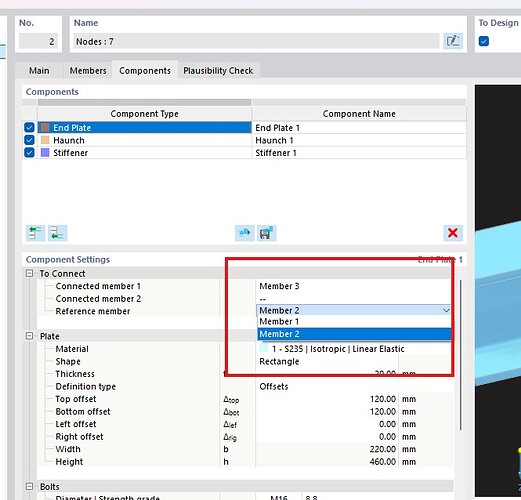

The steel joint doesn't allow me to select two reference members (member 1 and 2) only one of them is allowed to select.

w err 2
w err 2665×638 74.7 KB

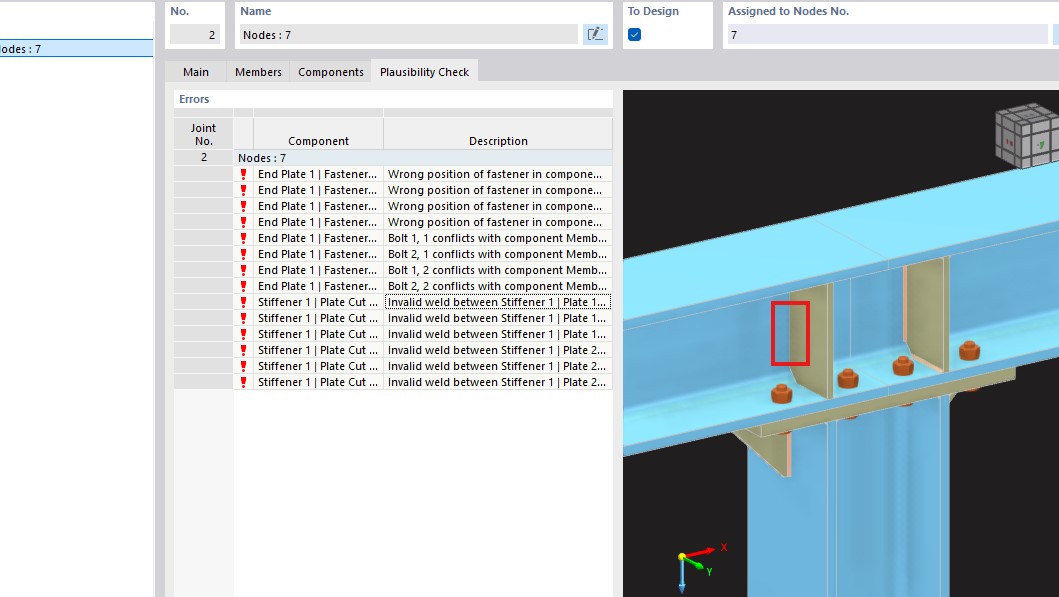

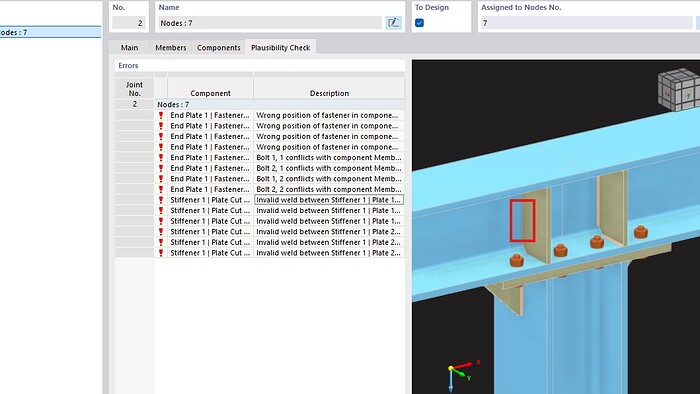

I believe that's the reason these plausibility errors. Further, I can see that one plate didn't weld properly to the beam.

w err 1
w err 11059×597 114 KB

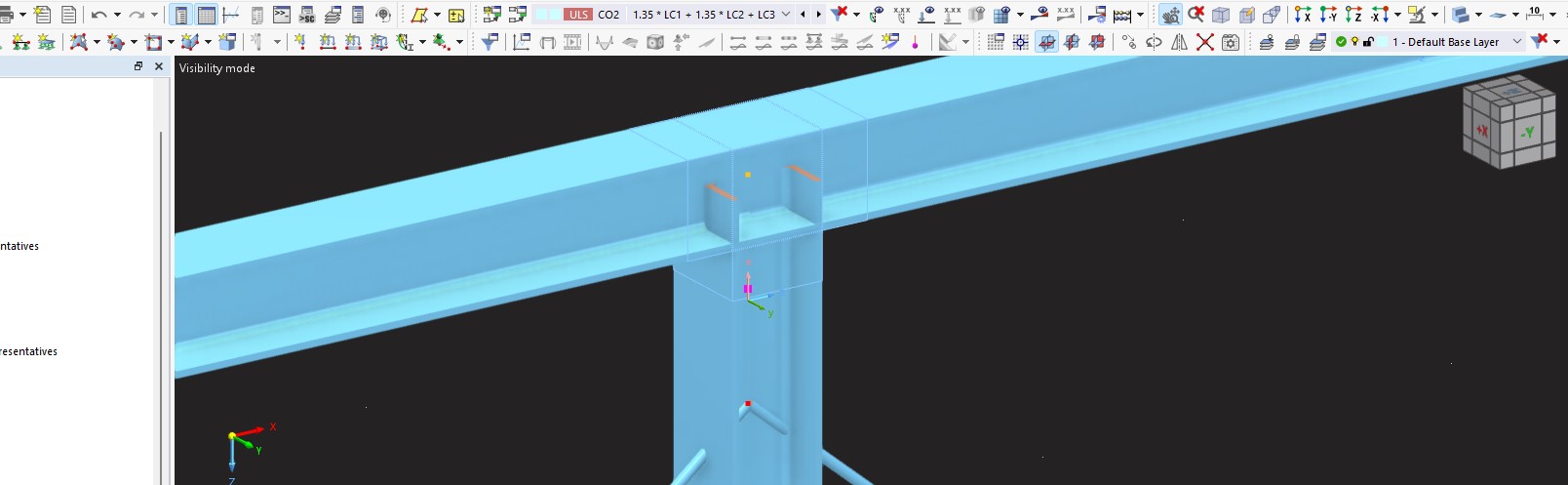

And I can see the added joint is not graphically visible in the main view (after I add it), it's invisible, should I tick any check boxes for it to be visible?

w err 3
w err 31608×497 85.5 KB

How do I fix this?

Project file
test4.rf6 (1.6 MB)

3

Hi, thanks for that question!

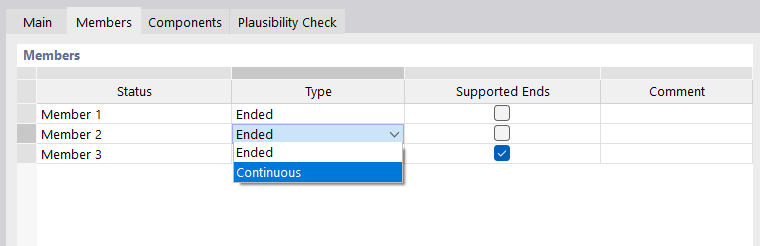

The component only allows one reference member because different references could cause problems if they are not aligned with each other. For those cases, there is the option of classifying two members as "continuous" in the member tab:

image760×246 6.25 KB

This will most likely solve all the problems you mentioned.

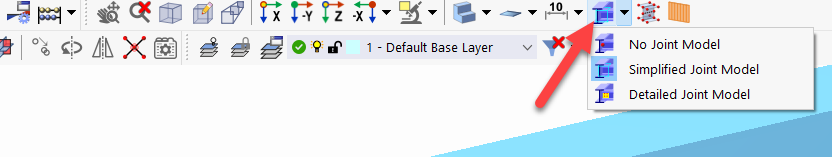

And yes, there is a setting to display the joint geometry in the main model:

image832×157 23.8 KB

I hope this will help you!
BR, Fabian

1 Like
4

Hello,

I see that you are using the RFEM connection module. Out of curiosity, how long does it take to calculate the connection?

I tested the module myself, and even for a small connection, it can take up to 10 minutes to calculate, which is far too long...

2 Likes
5

Hi @Benjamin.Thomas,
This, of course, depends on the hardware you are using. The calculation is way more complex than for a rod structure, as the detailed geometry of the joints requires a fine mesh and different kind of nonlinearities are dealt with.

I recommend calculating a joint only for a few governing load combinations, at least for the designing process.

To answer your question precisely, on my computer the calculation of one joint under one load combination usually needs between 1 and 3 minutes to calculate - depending on the complexity of the geometry.

BR, Fabian

1 Like
