Tendon Profile – Plausibility Error

Product Support
, ,
1

Hello,

While developing the tendon profile and checking the calculations in RFEM, I encountered the error message shown in the attached screenshot.

Could you please help me understand the cause of this error and how to resolve it?

Thank you for your support.

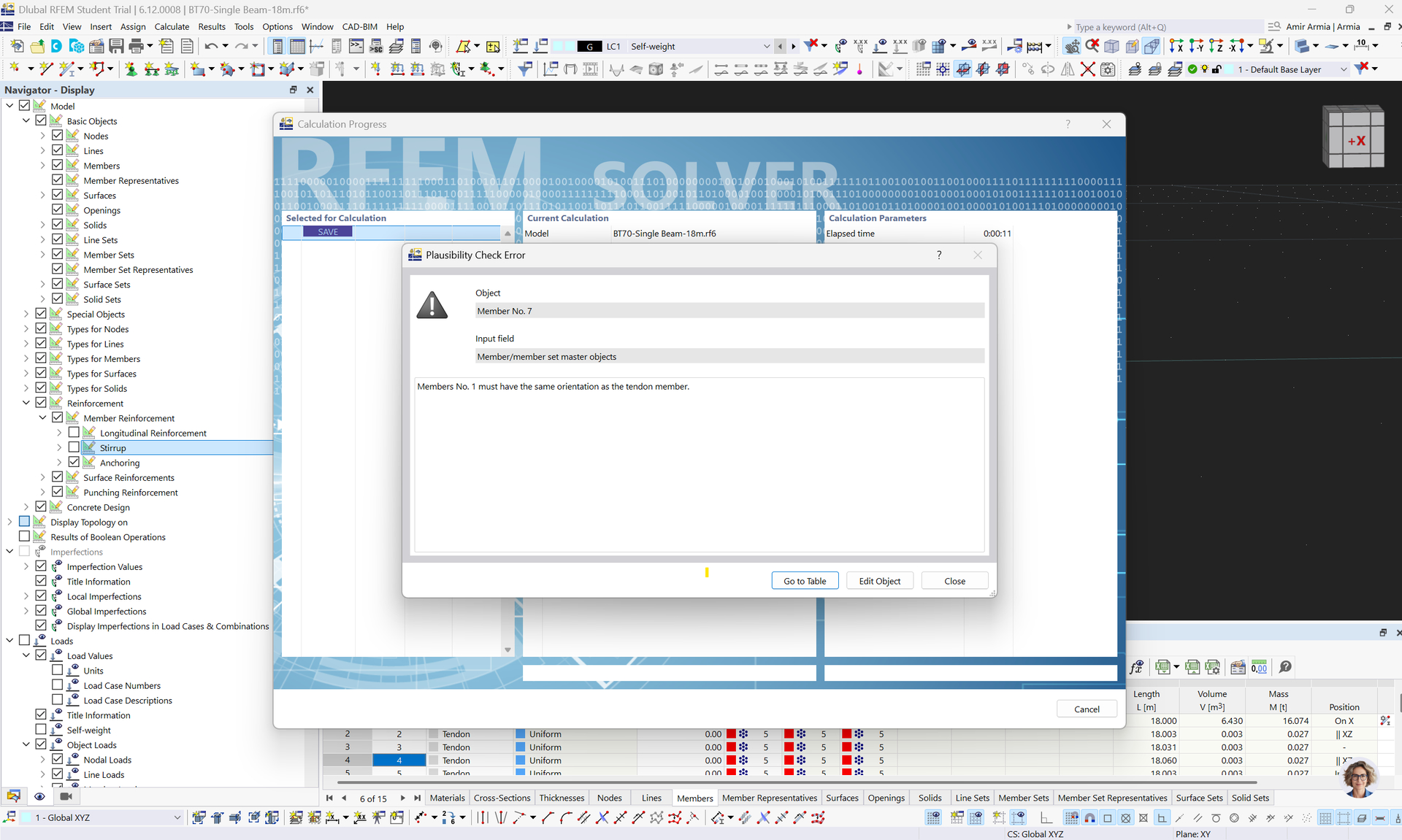

image1920×1151 1010 KB

3

Hello @amirarmia,

This error is typically caused by a different member orientation between the structural member and the tendon member.

For example:
If the beam member lies in the x-y plane and runs in the positive y-direction, then the tendon member must also run in the same y-direction. Otherwise, the FE node connection between the tendon and the structural member cannot be established correctly.

In this scenario, no tendon member should run transversely/crosswise to the beam member.

In most cases, this can be solved by reversing the member orientation of either the beam or the tendon so that both members have the same local axis direction.

If you still experience problems, feel free to send me the model via direct message or simply upload it here in the chat, and I can take a closer look at the setup.

I’m happy to take a closer look at your model :slight_smile:

4

Hello @ann-kathrin.dannwerth

Thank you so much for your quick reply and support.

Unfortunately, I am still encountering the same problem. Therefore, I have attached my RFEM model for your reference and review. I would greatly appreciate it if you could check the model and help me identify the source of the issue.

Thank you again for your time and assistance.
BT70-Single Beam-18m.rf6 (1.8 MB)

5

Hello @amirarmia,

I have now checked your model and the issue is caused by inconsistent member orientations.

Please try the following steps:

  1. Enable the member orientations display
    (right click → “Member Orientations on/off”)

  2. You will then see that some members run in positive x-direction while others run in negative x-direction.

  3. Reverse one of the two directions so that all tendon and beam members have the same orientation.

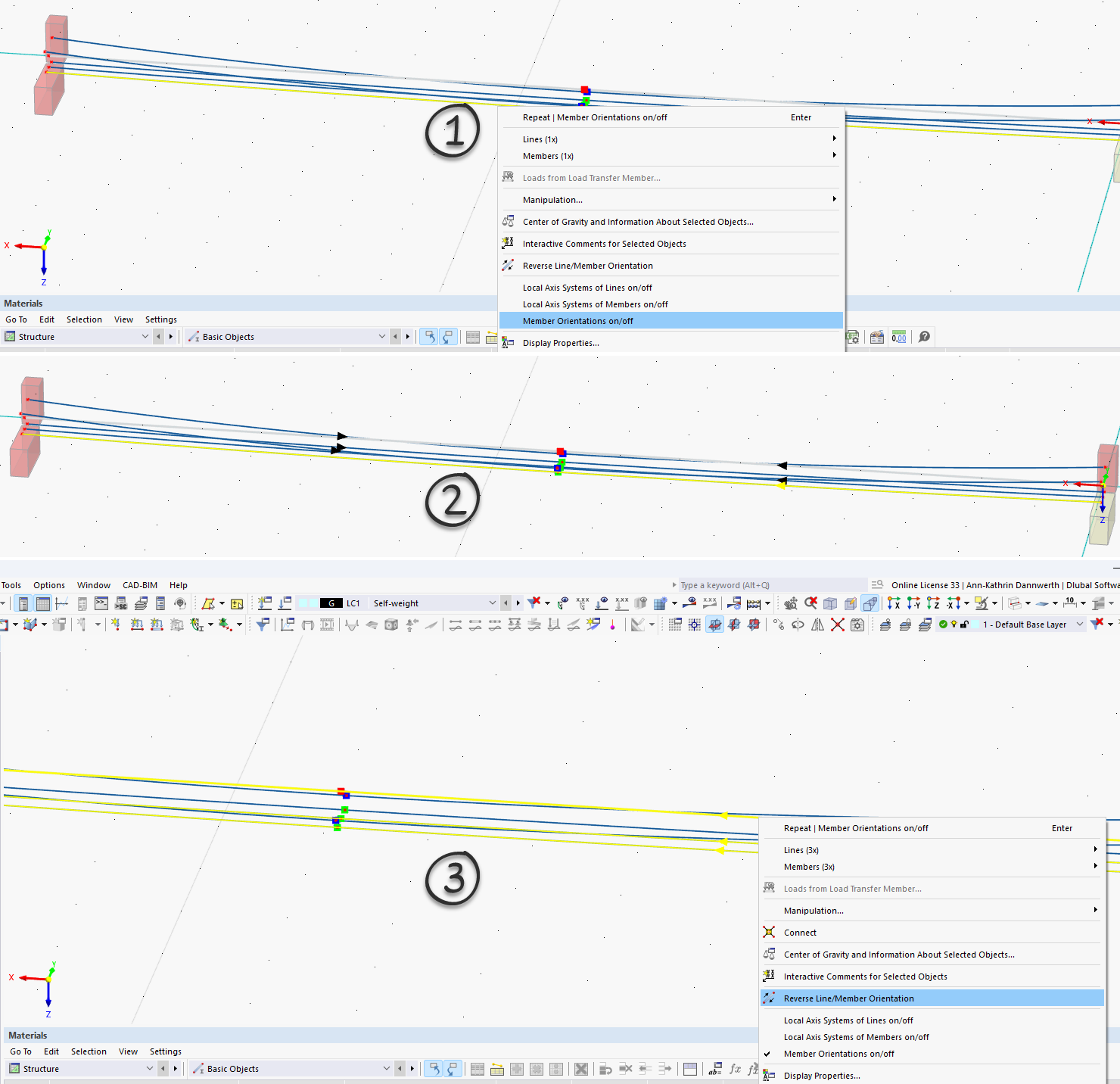

I attached a screenshot below showing the procedure. After adjusting the member orientation, the tendon connection should work correctly. :slightly_smiling_face:

Snag_ac8a69
Snag_ac8a691480×1432 260 KB

6

Dear Ann-Kathrin, @ann-kathrin.dannwerth

Thank you very much for your support. I truly appreciate your help, and I am pleased to inform you that the problem has been resolved.

1 Like
